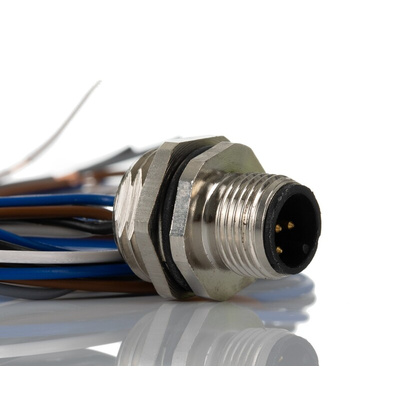

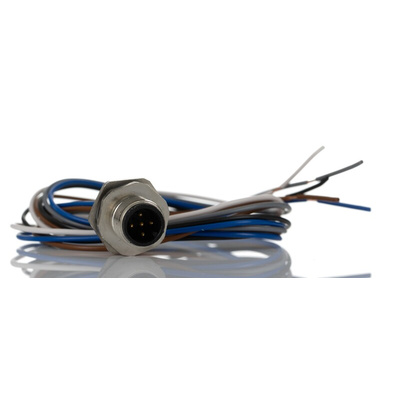

RS PRO Straight Male M12 to Unterminated Sensor Actuator Cable, 500mm

RS PRO 5 Core Male M12 Connector Assembly (Unterminated)

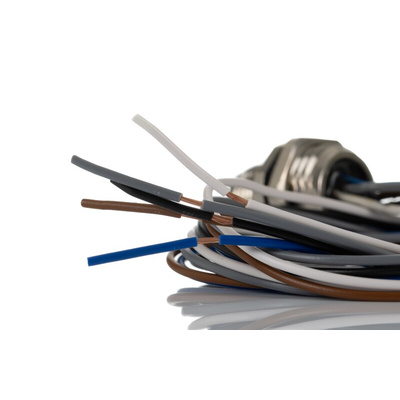

The RS PRO M12 single-ended multicore cable assembly is designed for front panel mounting and features 5 x 500mm partially stripped wires for quick and easy custom installation, and a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.
Featuring a Brass Nickel-Plated housing with a secure Neoprene O-ring for peace of mind from moisture and liquid penetration, Gold plated contacts for excellent data transmission and each wire is wrapped in Polyvinyl Chloride (PVC) for easy and safe termination. The RS PRO multicore cable assembly is built for the industrial environment.

Features and benefits

• M12 connector to unterminated wires


• M16 x 1.5mm Clamp Nut


• Shielded A coded cable


• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge


• Neoprene O-ring to keep out liquid and moisture


• Nickel-plated Brass housing


• 5 Core cable


• Length 500mm


• Operating temperature range from -25°C to +75˚C


• Voltage rating of 60V


• Brass contacts with Gold Flash plating


• Current rating of 4A


• IP67 rating

Typical Applications

Ideal for industrial use in automation and sensor equipment in a wide range of applications including:

• Instrumentation


• Process control


• Robotics


• Assembly lines


• Factory automation


• Industrial automation

Approvals and Standards: IEC 61076-2-101
