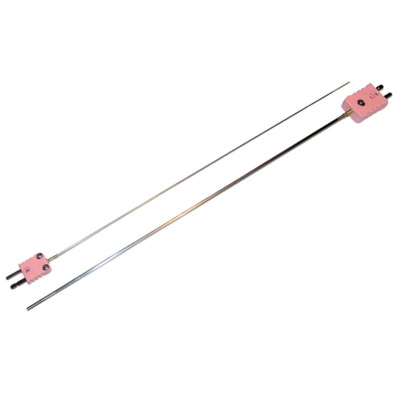

282-1N-1.5-0300M, ElectrothermMTE282 Type N Thermocouple 300mm Length, 1.5mm Diameter → +220°C

The Electrotherm thermocouple is a bendable sheathed thermocouple 1xN with mini connector plug. The thermocouple sensor used to measure temperature in a range of different processes. The thermocouple is flexible, has a very fast response and high accuracy. A thermocouple consists of two wire legs made from different metals joined together at their two ends to form two junctions. Its miniature or standard size quick disconnect connector. Thermocouples are ideal tools for the measurement of high temperatures and are a popular choice and they are a robust, reliable and affordable solution. Its measuring range is 0...1000°C (on plug max. 220°C). Its insulated from sheath.

Thermocouple
Measuring range 0 to 1000°C (on plug max. 220°C)
1x type N (NiCrSi-NiSi) DIN EN 60584
Insulated from sheath
Sheathed material 2.4816
Diameter of sheathed material ø1,5 mm and ø3 mm
Length 300 mm
Mini connector plug

Datasheet - 282-1N-1.5-0300M
