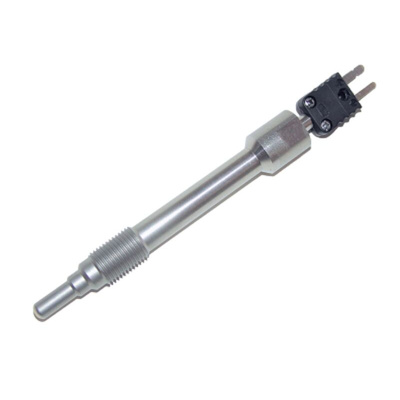

289-1J-1/2-20UNF, ElectrothermTE289 Type J Thermocouple 14mm Length, 6mm Diameter → +220°C

The Electrotherm thermocouple used for screwing in with mini-connector (for special applications in the plastics industry). A thermocouple is essentially a temperature sensor (a device used for temperature measurement). It is made up of two wires of different metals that, when joined together, create an electrical junction known as a measuring junction. Its J type thermocouple sensor. Its measuring range is 0 to 550°C (on plug max. 220°C).

Thermocouple
1x Typ J (FeCu-Ni) DIN EN 60584 (+ bl
- wh)
Degree of protection - IP 54 acc. DIN EN 60 529
Measuring range - 0 to 550°C (on plug max. 220°C)
Protective tube - ø6 mm
Protective tube material 1.4571
Installment length - 14 / 24 / 90 mm
Thread - 1/2-20UNF
Mini connector

Datasheet - 289-1J-1/2-20UNF
