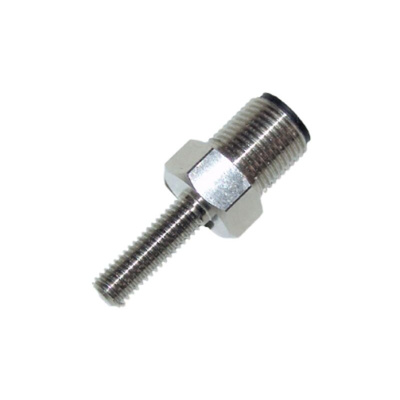

412S1-E-4L-100-M6-20, Electrotherm PT100 RTD Sensor, 6mm Dia, 20mm Long, 4 Wire, M6, +100°C Max

The Electrotherm resistance thermometer is a small resistance thermometer used for screwing in with built in connector M12x1. Resistance thermometer type is 412S1. The resistance thermometers are very well suited for use in general machine, apparatus, plant, container and pipeline construction, as well as in the chemical and process engineering and food industries, where they are preferably used for detecting the temperature in liquid and gaseous media. Its compact design and very flexible installation options. Their compact design makes them particularly suitable for installation in places with limited space.

Resistance thermometer
Built in connector series 713 M12x1 4-pin
Degree of protection - I 54 acc. to P DIN EN 60529 when closed
Measuring range 0 to +100°C
1 x Pt 100 F0,3 acc. to DIN EN 60751 in 4-wire-circuit
Protective tube material 1.4571
Installment length 20 mm
Thread M6

Datasheet - 412S1-E-4L-100-M6-20
