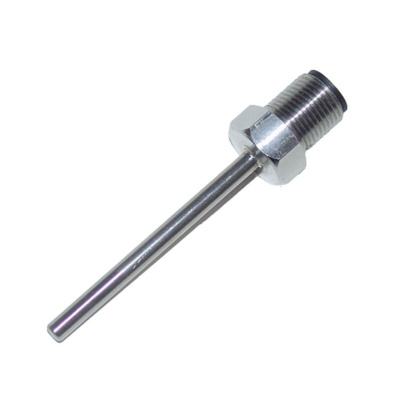

412S2-E-4L-100-4-50, Electrotherm PT100 RTD Sensor, 4mm Dia, 50mm Long, 4 Wire, G1/4, +100°C Max

The Electrotherm resistance thermometer is a small resistance thermometer used for set in with built in connector M12x1. Resistance thermometer type is 412S2. Its use a sensor to detect changes in temperature. Its compact design and very flexible installation options. Their compact design makes them particularly suitable for installation in places with limited space. The resistance thermometers are very well suited for use in general machine, apparatus, plant, container and pipeline construction, as well as in the chemical and process engineering and food industries, where they are preferably used for detecting the temperature in liquid and gaseous media.

Resistance thermometer
Built in connector series 713 M12x1 4-pin
Degree of protection I 54 acc. to P DIN EN 60529 when closed
Measuring range 0 to +100°C
1 x Pt 100 F0,3 in 4-wire-circuit
Protective tube material 1.4571
Installment length 50 mm
Protective tube diameter d ø4 mm

Datasheet - 412S2-E-4L-100-4-50
