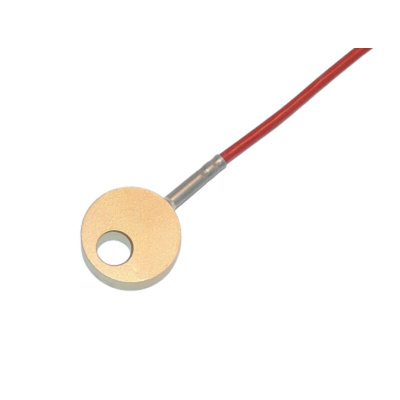

K14-E-4L-200, Electrotherm PT100 RTD Sensor, 20mm Dia, 20mm Long, 4 Wire, 6 mm Tube, +200°C Max

The Electrotherm cable sensor used for surface measurements. The contact plate element is usually made of brass and joining pipe is made of stainless steel as these materials are have high accuracy, fast response time, and a wide temperature range. The main function of is to probe increases and decreases in temperature and control them accordingly. Its type K14 high-temperature cable sensor Pt100. Base values and limit deviations according to DIN EN 60751.

Cable-sensor
1 x Pt100 F0,3 DIN EN 60751 in 4-wire-circuit
Contact plate ø20 material - brass
Joining pipe material - stainless steel
Protective tube ø20x6 mm/ ø4x20 mm
Cable - TeSi 4xAWG26 (200°C)
Cable length - 2500 mm

Datasheet - K14-E-4L-200
