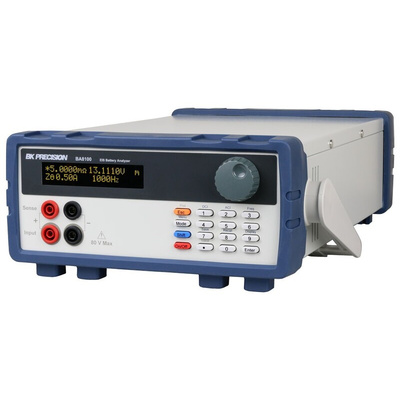

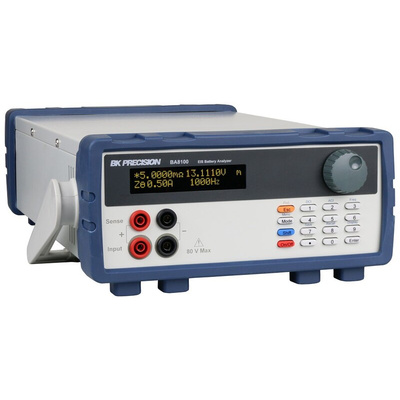

BK Precision BA8100 Battery Analyser

The B&K Precision EIS Battery Analyzer designed for diagnosing battery systems. In comparison to the BA6010 Series Battery Analyzers, the BA8100 provides access to more complex AC measurement techniques such as Electrochemical Impedance Spectroscopy (EIS). Utilizing this non-intrusive technique, batteries can be characterized through graphical analysis tools, such as Nyquist and Bode plots included in the provided software. When it comes to measurement capabilities, the BA8100 can measure internal battery impedance at a desired frequency up to 10 kHz as well as voltage (up to 80 V), current (up to 3 A), phase, capacitance, inductance and quality factor.

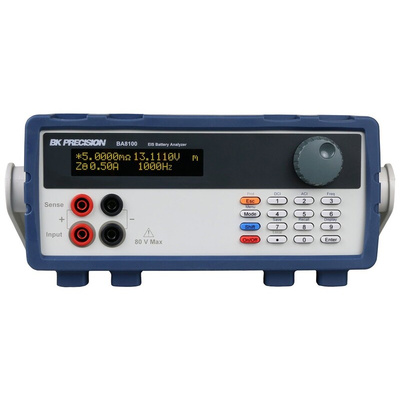

Fixed frequency measurements from the front panel
Swept stimulus frequency with included software
Maximum input voltage of 80 V
EIS frequency range of 50 MHz to 10 kHz
Programmable DC and AC current settings
Measurements include impedance Z, phase angle θ, voltage and current
Simple 4-wire test connection

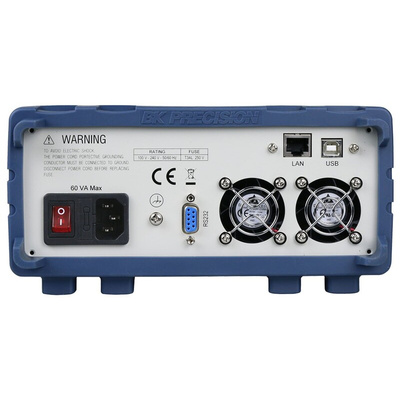

LAN, USB (COM), and RS232 interfaces standard

Warranty

3 Years

Accessories

Included: AC Power Cord, Kelvin Clip Test Leads, Self-Test Fixture (TLC81), Calibration Certificate

Datasheet - BA8100
