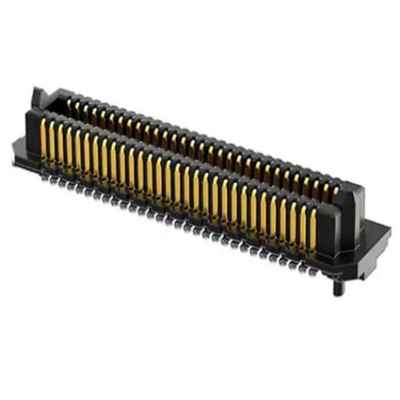

ADM6-60-01.5-L-4-2-A-TR-1, Samtec ADM6 Series Vertical Surface Mount PCB Header, 120 Contact(s), 0.635mm Pitch, 4 Row(s), Shrouded

Samtec PCB Header, 1.34A Current Rating, Copper Alloy Contacts - ADM6 Series - ADM6-60-01.5-L-4-2-A-TR-1

For powerful electrical transmission in small spaces, plug in this high-density PCB header from Samtec. Its slim body is only 5mm wide with an ultra-compact pitch of just 0.635mm between contacts. This makes it a solid fit in a crowded IT setup. An open-pin-field design gives you plenty of flexibility when it comes to routing, with 120 contacts arranged in four rows to foster multiple connections at once. As the header is shrouded, its pins are protected from external pressures for a more secure signal.

Features & Benefits

• Gold-plated copper alloy contacts are highly conductive and resistant to wear for use in challenging settings
• Lead-free solder ball termination ensures error-free alignment
• Matte tin plating on tail resists corrosion and is ductile for added strength
• 1.34A current rating per pin for compatibility with light-duty systems

Applications

• Data server racks
• Consumer electronics production
• Transportation systems

What ambient temperatures can I use this PCB header in?

The unit performs reliably in extreme environments, thanks to a broad operating temperature range between -55°C and +125°C.
