Renesas Electronics F2976NEGK SPDT RF Switch, 12-Pin TQFN

The Renesas Electronics single-pole double-throw (SP2T) reflective RF switch features high linearity and wide bandwidth. This device is optimized from 5MHz to 1.8GHz to support downstream cable modem future migration for DOCSIS 3.1 applications, and operates at up to 10GHz to support a multitude of wireless RF applications. Superb performance is achieved when used in either 50Ω or 75Ω terminating impedance applications. The F2976 uses a single positive supply voltage of either +3.3V or +5.0V and is compatible with either 1.8V or 3.3V control logic.

This RF switch provides extremely low insertion loss across the entire bandwidth while providing superb distortion performance
It is optimized for DOCSIS 3.1 applications for up to 1.8GHz
It is optimized for Wi-Fi applications up to 5.9GHz
It provides low insertion loss and high isolation
It allows fast switching and no external matching is required

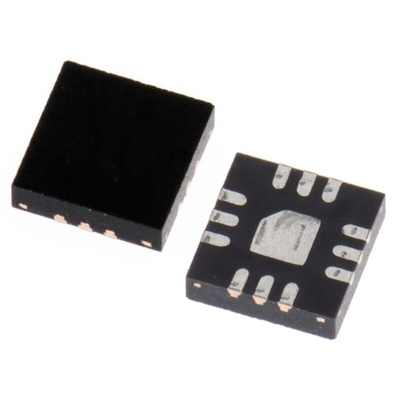

It is available in 2mm x 2mm 12-pin TQFN package
Operating temperature range is -40°C to +105°C

Datasheet - F2976NEGK
