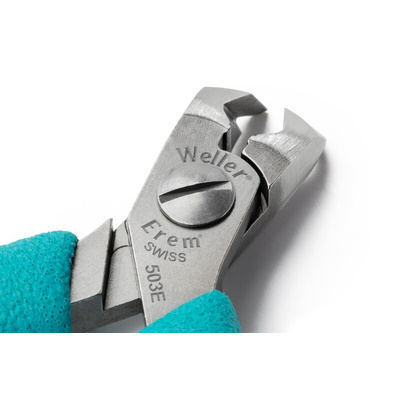

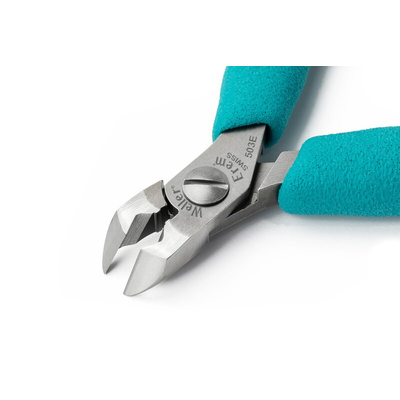

Erem by Weller Flush Type Tip Cutter – 503E

Series 500 angled head all-purpose flush type tip wire cutters suitable for medium-hard and soft wire.
The 503E is an ESD-safe all-purpose tip wire cutter that provides a flush cut. The blades are made from high grade tool steel to ensure high-performance and are finished with an anti-glare varnish. The ergonomic handles are designed to maintain the user’s grip during use and reduce discomfort over long periods of usage.

Features & Benefits:

• Angled head: the angled head provides precision at a range of different working angles.


• Flush cut: no spikes produced on wire, ensuring high-precision cuts.


• Overall length of 110 mm: the small, short head provides increased cutting resistance that can be used for almost all applications.


• Ergonomic handle design: prevents discomfort or loss of grip over long periods of use


• Anti-glare finish: prevents glare during use to ensure precision and high user visibility.

Specifications:

• Max. cutting capacity (medium wire): 1.0 mm


• Max. cutting capacity (copper wire): 1.6 mm


• Jaw length: 12 mm


• Overall length: 110 mm


• Material: Tool Steel


• Weight: 67g


• Series: 500, Medium


• Cut type: Flush


• Head thickness: 6 mm


• Head width: 11 mm


• ESD Safe: Yes

Typical Applications:

Cable Cutters are tools designed with electricians in mind, but a reliable set of cable cutters should always be at hand. These tools are ideal for cutting and stripping wires of all shapes and sizes. Wire cutters feature ergonomic designs for comfort, confidence and safety of use. Speciality models are suitable for insulated wire cutting and use in Electrostatic Discharge (ESD) environments. Cable cutters are commonly used by:

• electricians


• gas engineers


• telecommunication engineers


• car mechanics


• DIY enthusiasts

FAQ:

Are these insulated?
These cutters are ESD-Safe, meaning any possible electrostatic discharge is dissipated and prevented from building to levels that are potentially dangerous.
However, these are not VDE-certified and so cannot be used on live electrical wires or cables.
What’s the maximum cutting capacity?
The maximum cutting capacity for medium-hard wires is 1.0 mm and the maximum cutting capacity for soft wires, such as copper, is 1.6 mm.
