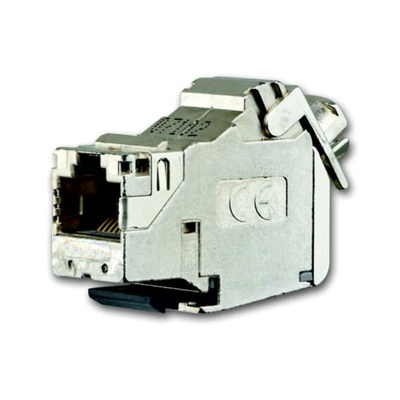

2CKA000230A0413, ABB Female Ethernet Connector, Flush Mount, Cat6a

The ABB universal module can be mounted on installation adapter 0219/12 or 0219/13. It is also suited for mounting into cover plate 2561-xxx, 2564-02-xxx and bases 1812, 1866 EB, and 1867 EB. It has RJ-45 terminals for networks according to Cat 6A, Class EA (10 Gbits/s / 500MHz). Earthing of housing via 6.3 mm blade terminal at the back is possible. It has insulation displacement connection for data cables with a diameter of 6 -10 mm. The housing is made from die cast zinc and has integrated dust-protection cap (can be removed if necessary). It is suitable for wires of AWG 24-22, trunk systems, flush-mounted wall boxes and underfloor systems.

For 8-pole plug RJ 45 only
Shielding according to DIN EN 55022, Class B
Suitable for PoE+ according to IEEE 802.3at.
Bend-radius optimised cable feed (30°)
Suitable for Mix-and-Match operation
Terminal marking A and B according to TIA/
