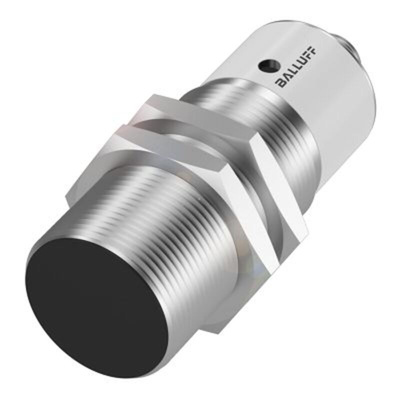

BES01EA, BALLUFF Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 12 mm Detection, PNP Output

The Balluff inductive standard sensors with preferred types for detecting objects in metal areas are robust and reliable. It is available in wide range and offer right inductive sensor for every application. This technology is used worldwide with an optimum price/performance ratio and delivered in a short amount of time even in large quantities.

Operating range is 15 mm
Switching output is PNP normally open (NO)
Switching frequency is 100 Hz
Housing material is made up of brass, nickel-free coated
Connector type M12x1-Male, 4-pin
Operating voltage 10 to 30 VDC
Ambient temperature -25 to 70 °C
IP rating IP67

Datasheet - BES01EA
