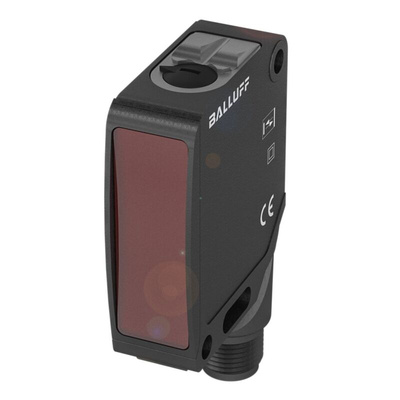

BOS027N, BALLUFF Diffuse Photoelectric Sensor, Block Sensor, 100 mm Detection Range

The balluff diffuse sensors offers an economical solution if you want to reliably detect contrast differences. These diffuse sensors detect objects based on their surface, colour, and material. The transmitter and receiver are housed together in a single unit so that you can easily mount the diffuse sensors and align them quickly using their highly visible light beams. Depending on the model, our diffuse sensors offer you highly visible red light, invisible infrared light, or very precise laser light that is ideally suited for detecting small parts.

Special wash-down characteristics
Dimension
15.4 x 51.1 x 42.7 mm
Interface IO-Link 1.1
Switching type is PNP normally open (NO) and PNP normally closed (NC)
Photoelectric sensor principle of operation
Diffuse sensor, energetic beam characteristic
Red colour LED light type
Operating range 10 to 1000 mm
Connector is M12x1-male with 4-pin
Die-cast zinc coating
Material sensing surface PMMA
Operating voltage is between 10 to 30 VDC

Datasheet - BOS027N
