Fluke 1662 UK FTT Electrical Installation Tester Bundle, 100 V, 250 V, 500 V, 1000 V

Fluke 1662 Multifunction Tester with TruTest Data Management Software Kit

This great bundle offer from Fluke includes the 1662 Multifunction Tester and the TruTest Data Management Software.

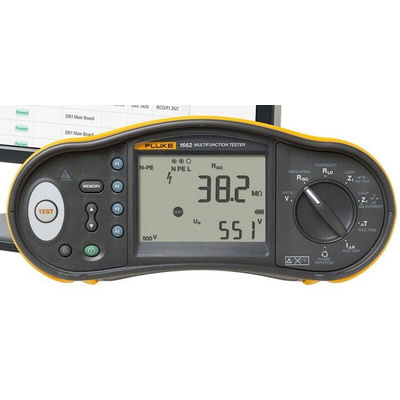

Fluke 1662 Multifunction Tester

The Fluke 1662 installation tester with an insulation test voltage of 100V, 250V, 500V and 1000V ensures safe and correct installation of fixed wiring to meet the necessary requirements. This tester is reliable and provides all the basic testing power you need for day-in, day-out installation testing. It is easy to use and tests to all local regulations. It has some great features like the auto test feature which reduces test time as it performs five required installation tests in one sequence, including selectable Type A, AC, and RCD auto test. It reduces the number of manual connections, decreases the possibility of making errors, and reduces test time up to 40% from previous Fluke models.

1662 Multifunction Tester Features:

Tests voltage and frequency
Checks wiring polarity to detect broken N wires
Measures insulation resistance and loop and line resistance
Measures motor windings with continuity test
Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)
Measures RCD switching time and tripping level (ramp test)
Measures trip time and current for RCD type A & AC in one test
Measures RCD variable current
Provides automatic RCD test sequence
Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
Includes a phase sequence indicator
IP40 sealing
Type AA Battery x 6
Dimensions (LxWxH): 100 x 250 x 125 mm
Complies with EN/IEC 61010-1 and EN/IEC 61010-2-034
CAT III / 500V; CAT IV 300V

TruTest Data Management Software

The Fluke TruTest Software is designed to eliminate the hassle associated with traditional electrical system data management and reporting. Whether you are testing appliances in an office, verifying repairs in a workshop, or performing annual inspections proper data management is critical for producing easy-to understand reports for clients. Compatible with a growing list of Fluke and Beha-Amprobe test and measurement devices TruTest Software allows you to import measurement results directly quickly and easily from your test instruments, manage files transferred from instruments, or manually enter data as needed.
Fluke TruTest Software simplifies the reporting process so you can produce easy-to-understand test certificates and reports as quickly as possible, saving you time and money.

TruTest Data Management Software Features:

Easily manage measurement data
Quickly create test certificates and reports - All of these reports are available at the touch of a button, and a pre-configured international template ensures that no matter your location TruTest Software has you covered.
Free updates for 5 years after installation
Easy data collection and database transfers
Enables manual data entry
Intuitive user interface
Fast and simple operations

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Supplied with
type":"Supplied with",

1662 Multifunction Installation Tester
6x AA (IEC LR6) cell batteries
C1600 hard carrying case
Zero adapter
Heavy duty mains cord
STD standard test lead set
Padded carrying and waist strap
Quick reference guide
TP165X remote control probe and lead
IR189USB cable
TruTest Data Management Software

Datasheet - 1662 UK FTT

Instruction sheet - 1662 UK FTT
