Fluke 1663 UK FTT KIT Electrical Installation Tester Bundle, 50 V, 100 V, 250 V, 500 V, 1000 V

Fluke 1663 Multifunction Tester with TruTest Data Management Software Kit

This great bundle offer from Fluke includes the Fluke 1663 Multifunction Tester with TruTest Data Management Software Kit.

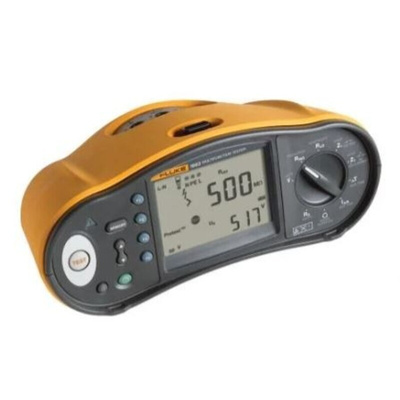

Fluke 1663 Multifunction Tester

The Fluke 1663 installation tester with an insulation test voltage of 50V, 100V, 250V, 500V and 1000V ensures safe and correct installation of fixed wiring to meet the necessary requirements. The 1663 installation tester delivers the full-featured functionality and advanced measurement capabilities that professional installers need. It is compact and lightweight (less than 1.3 kg) and comes with a padded carrying and waist strap for convenient handling. Operation is intuitive and easily mastered by all levels of workers so you can put it to work immediately for quick and efficient testing to all local regulations. Additional helpful features like On/Off switchable auto-start for RCD and loop test, and self-test save time and give you more confidence in your results.

Fluke 1663 Multifunction Tester Features

Tests to all local regulations and provides test results for complete documentation
Tests continuity at L-N, N-PE inputs
Tests smooth dc sensitive RCDs (Type B)
Tests earth resistance, voltage, and frequency
Checks wiring polarity to detect broken N wires
Measures insulation resistance and loop and line resistance
Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
Measures motor windings with continuity test
Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)
Measures RCD switching time and tripping level (ramp test)
Measures trip time and current for RCD type A & AC in one test
Measures RCD variable current
Provides automatic RCD test sequence
Includes a phase sequence indicator
Safety rated CAT III 500V, CAT IV 300V

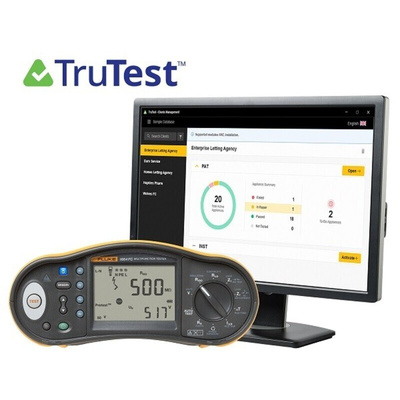

TruTest Data Management Software

The Fluke TruTest Software is designed to eliminate the hassle associated with traditional electrical system data management and reporting. Whether you are testing appliances in an office, verifying repairs in a workshop, or performing annual inspections proper data management is critical for producing easy-to understand reports for clients. Compatible with a growing list of Fluke and Beha-Amprobe test and measurement devices TruTest Software allows you to import measurement results directly quickly and easily from your test instruments, manage files transferred from instruments, or manually enter data as needed.
Fluke TruTest Software simplifies the reporting process so you can produce easy-to-understand test certificates and reports as quickly as possible, saving you time and money.

TruTest Data Management Software Features:

Easily manage measurement data
Quickly creates test certificates and reports - All of these reports are available at the touch of a button, and a pre-configured international template ensures that no matter your location TruTest Software has you covered.
Free updates for 5 years after installation
Easy data collection and database transfers
Enables manual data entry
Intuitive user interface
Fast and simple operations

Fluke 1663/1664 FC Multifunction Tester includes a feature to test 6mA RDC-DD, in accordance with international standards IEC 62955 and
IEC 61851-1. The new 6mA testing functionality adds an important feature to our already comprehensive testing solutions for electric vehicle supply equipment (EVSE), making it easier for our customers to perform all necessary tests in one go.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Supplied with
type":"Supplied with",

1663 Multifunction Installation Tester
6 x AA (IEC LR6) cell batteries
C1600 hard carrying case
Zero adapter
Heavy duty mains cord
STD standard test lead set
Padded carrying and waist strap
Quick reference guide
TP165X remote control probe and lead
IR189USB cable
TruTest Data Management Software

Datasheet - 1663 UK FTT

Instruction sheet - 1663 UK FTT
