RS PRO Touch Screen HMI - 4.3 in, LCD, TFT Display, 480 x 272pixels

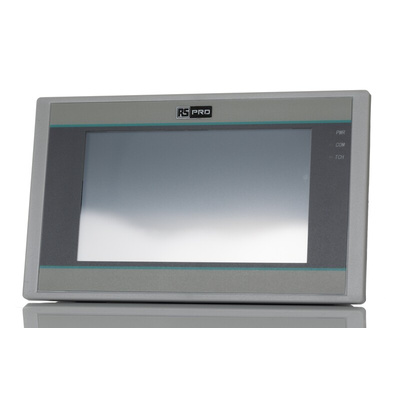

RS PRO 4.3in Touch Screen HMI, 480 x 272 pixels

The RS PRO 4.3in HMI (Human Machine Interface) touch screen display is designed for the fluent and easy task management and monitoring of industrial machines, status displays and SCADA systems (Supervisory Control and Data Acquisition).
The responsive touch screen interface replaces the need for dials and switches with simple, easy to understand software streamlining processes and reducing the possibility of costly human and mechanical error.
The RS PRO touch screen HMI features a Linux 4.4 QT based operating system, 300+ popular PLC serial protocols and the powerful and ultra-high efficient Cortex A35 processor, capable of running multiple software packages and delivering outstanding performance.

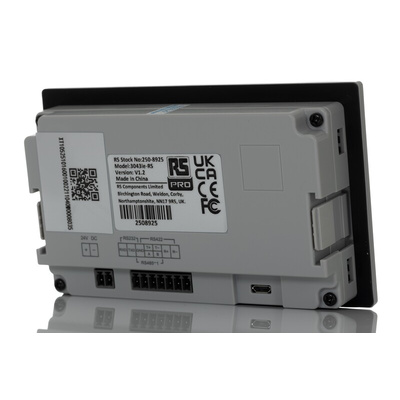

The RS PRO touch screen HMI display features 64MB of DDRAM memory with a further 128MB of Flash memory and a variety of port options using the 2 in 1 RS422/485 or the RS232 port and a Micro USB slot. The HMI display is easy to set up and can be panel mounted for wall or machine display in a panel cut out of 131 x 78mm
The RS PRO 4.3in Touch Screen interface is suitable for a wide range of applications including air conditioning and temperature control systems, access control, systems monitoring and process control in both industrial and commercial settings.

Features and benefits

• 4.3in high precision touch screen


• Cortex A35 1.2GHz processor


• Linux 4.4 QT based software


• 300+ popular PLC Serial Protocols


• 16000 colours


• 480 x 272 pixels


• TFT display


• LED backlight


• 64MB DDRAM/ 128MB Flash memory


• Micro USB port


• 2 in 1 RS422/485 port and RS232 port


• Built in clock and calendar


• 300g in weight

Approvals and Standards: UKCA, CE, FCC Class A, MFR Declaration of Conformity

Comprehensive user manual and configuration software downloads available under Technical References on this product page.

What is a HMI?

HMI stands for Human Machine Interface and is quite simply a way for humans to connect with machines. HMIs remove the need for dials and switches to control and monitor machines and replaces them with simple to use software. Many of the modern HMIs are touch screen which further simplifies their use removing the need for proficient keyboard skills and reducing the possibility of mistakes.
You have probably used HMIs in your everyday life without even noticing such as interacting with smart phones, shop displays and cash machines.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
