RS PRO Touch Screen HMI - 7 in, LCD, TFT Display, 800 x 480pixels

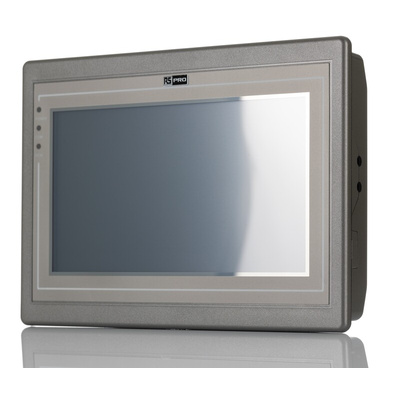

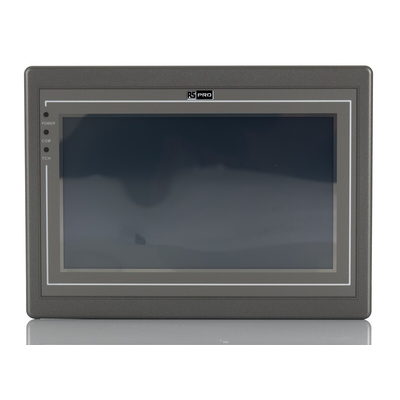

RS PRO 7in Touch Screen HMI, 800 x 480 pixels, CANopen

The RS PRO 7in HMI (Human Machine Interface) touch screen display is designed for the fluent and easy task management and monitoring of industrial machines, status displays and SCADA systems (Supervisory Control and Data Acquisition).
The responsive touch screen interface replaces the need for dials and switches with simple, easy to understand software streamlining processes and reducing the possibility of costly human and mechanical error.
The RS PRO touch screen HMI features a Linux 4.9 QT based operating system as well as 300+ popular PLC serial protocols and is particularly suited to applications that require CANopen communication such as embedded systems used in industrial automation operations.
This compact but powerful CANopen HMI features the ultra-high efficient Cortex A35 processor, capable of running multiple software packages, 128MB of DDRAM memory and a further 128MB of Flash memory.

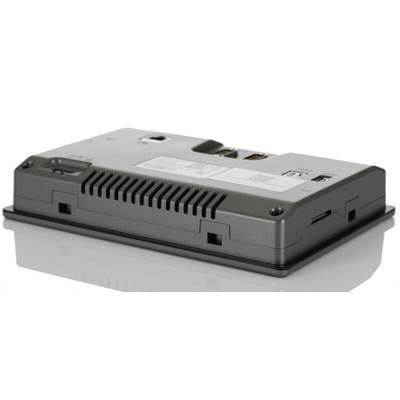

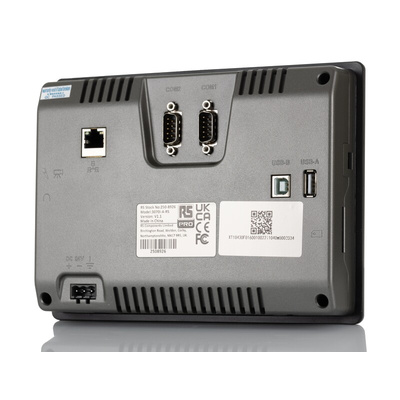

Supplied with a variety of port options including serial com port, a Micro USB slot and an SD Card slot enabling easy set up and it can be panel mounted for wall or machine display in a cut out of 192 x 138mm
The RS PRO 7in Touch Screen interface is suitable for a wide range of applications including air conditioning and temperature control systems, access control, systems monitoring and process control in both industrial and commercial settings.

Features and benefits

• 7in high precision touch screen


• Cortex A35 1.2GHz processor


• Linux 4.9.11 QT based software


• 300+ popular PLC Serial Protocols


• CANopen


• 16000 colours


• 800 x 480 pixels


• TFT display


• LED backlight


• 128MB DDRAM/ 128MB Flash memory


• Micro USB port


• COM Serial port


• SD Card slot


• Built in clock and calendar


• 740g in weight

Approvals and Standards: UKCA, CE, FCC Class A, MFR Declaration of Conformity

Comprehensive user manual and configuration software downloads available under Technical References on this product page.

What is a HMI?

HMI stands for Human Machine Interface and is quite simply a way for humans to connect with machines. HMI’s remove the need for dials and switches to control and monitor machines and replaces them with simple to use software. Many of the modern HMI’s are touch screen which further simplifies their use removing the need for proficient keyboard skills and reducing the possibility of mistakes.
You have probably used HMIs in your everyday life without even noticing such as interacting with smart phones, shop displays and cash machines.

What is CANopen?

CAN (Control Area Network) is a communication protocol that allows devices to monitor, communicate and send information to each other in embedded automated systems.
It is commonly used in automated applications and is heavily used in large industrial settings such as automotive factories to enable a large number of robotic and automatic parts to work in harmony without the need to send information back to a central computer at each exchange.
CANopen is a standard that sets the specifications and requirements that have to be met to be called a CANopen device and is designed to allow off the shelf products to fit and work together in one CAN network.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Software download available here
