RS PRO Touch Screen HMI - 10.2 in, LCD, TFT Display, 1024 x 600pixels

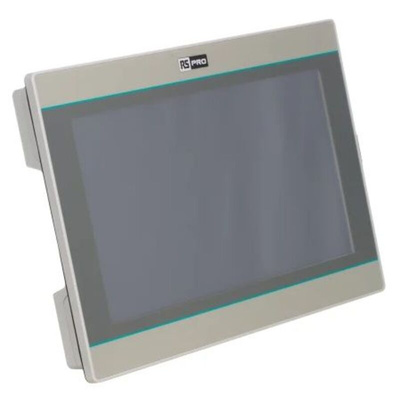

RS PRO 10.2in Touch Screen HMI, 1024 x 600 pixels, Cloud Enabled

The RS PRO 10.2in HMI (Human Machine Interface) touch screen display is designed for the fluent and easy task management and monitoring of industrial machines, status displays and SCADA systems (Supervisory Control and Data Acquisition).
The responsive touch screen interface replaces the need for dials and switches with simple, easy to understand software streamlining processes and reducing the possibility of costly human and mechanical error.
The RS PRO touch screen HMI features a Linux 4.9 QT based operating system and the powerful and ultra-high efficient Cortex A35 processor, capable of running multiple software packages and delivering outstanding performance.
Enabled for Cloud communication (using the iOS/Android App ’IIoT Box’) the RS PRO HMI allows remote monitoring, control of systems and the ability to update without the need to be on the factory floor via a Smart Phone or Tablet.
The RS PRO touch screen Cloud HMI display features 128MB of DDRAM memory and a further 128MB of Flash memory, a variety of port options including serial com port, a Micro USB slot and an SD Card slot. The HMI display is easy to set up and can be panel mounted for wall or machine display in a panel cut out of 260 x 179mm
The RS PRO 10.2in Touch Screen interface is suitable for a wide range of applications including air conditioning and temperature control systems, access control, systems monitoring and process control in both industrial and commercial settings.

Features and benefits

• 10.2in high precision touch screen


• Cortex A35 1.2GHz processor


• Linux 4.9.11 QT based software


• 300+ popular PLC Serial Protocols


• Cloud enabled


• Remote communication via IIoT iOS/Android app


• 16000 colours


• 1024 x 600 pixels


• TFT display


• LED backlight


• 128MB DDRAM/ 128MB Flash memory


• Micro USB port


• COM Serial port


• SD Card slot


• Built in clock and calendar


• 1.2kg in weight

Approvals and Standards: UKCA, CE, FCC Class A, MFR Declaration of Conformity

Comprehensive user manual and configuration software downloads available under Technical References on this product page.

What is a HMI?

HMI stands for Human Machine Interface and is quite simply a way for humans to connect with machines. HMI’s remove the need for dials and switches to control and monitor machines and replaces them with simple to use software. Many of the modern HMI’s are touch screen which further simplifies their use removing the need for proficient keyboard skills and reducing the possibility of mistakes.
You have probably used HMIs in your everyday life without even noticing such as interacting with smart phones, shop displays and cash machines.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Software download available here

RS PRO Datasheet

RS PRO User Manual
