RS PRO Touch Screen HMI - 15 in, LCD, TFT Display, 1920 x 1080pixels

RS PRO 15in Touch Screen HMI, 1920 x 1080 pixels, Cloud Enabled

The RS PRO 15in HMI (Human Machine Interface) touch screen display is designed for the fluent and easy task management and monitoring of industrial machines, status displays and SCADA systems (Supervisory Control and Data Acquisition).
The responsive 15in touch features 260k colours and a display resolution of 1920 x 1080. Ideal for applications that require a greater number of graphics or enhanced visibility at greater distances. The simple, easy to understand software replaces the need for dials and switches streamlining processes and reducing the possibility of costly human and mechanical error.
The RS PRO touch screen HMI features a Linux 4.4 QT based operating system and the powerful and ultra-high efficient Cortex A35 processor, capable of running multiple software packages and delivering outstanding performance.
Enabled for Cloud communication (using the iOS/Android App ’IIoT Box’) the RS PRO HMI allows remote monitoring, control of systems and the ability to update without the need to be on the factory floor via a Smart Phone or Tablet.

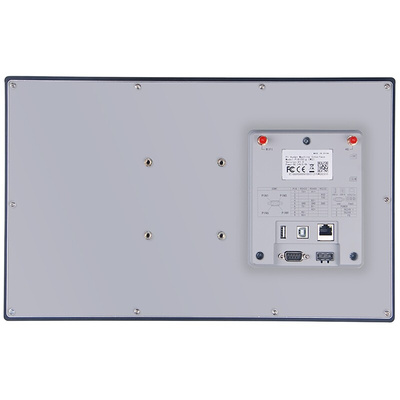

The RS PRO touch screen Cloud HMI display features 512MB of DDRAM memory with a further 4GB of Flash memory, a variety of port options including serial com port, a Micro USB slot and an SD Card slot. The HMI display is easy to set up and can be panel mounted for wall or machine display in a panel cut out of 390 x 244mm
The RS PRO 15in Touch Screen interface is suitable for a wide range of applications including air conditioning and temperature control systems, access control, systems monitoring and process control in both industrial and commercial settings.

Features and benefits

• 15in high precision touch screen


• Cortex A35 1.2GHz processor


• Linux 4.4 QT based software


• 300+ popular PLC Serial Protocols


• Cloud enabled


• Remote communication via IIoT iOS/Android app


• 260,000 colours


• 1920 x 1024 pixels


• TFT display


• LED backlight


• 512MB DDRAM/ 4GB Flash memory


• Micro USB port


• COM Serial port


• SD Card slot


• Built in calendar


• 2.46kg in weight

Approvals and Standards: UKCA, CE, FCC Class A, MFR Declaration of Conformity

Comprehensive user manual and configuration software downloads available under Technical References on this product page.

What is a HMI?

HMI stands for Human Machine Interface and is quite simply a way for humans to connect with machines. HMI’s remove the need for dials and switches to control and monitor machines and replaces them with simple to use software. Many of the modern HMI’s are touch screen which further simplifies their use removing the need for proficient keyboard skills and reducing the possibility of mistakes.
You have probably used HMIs in your everyday life without even noticing such as interacting with smart phones, shop displays and cash machines.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
