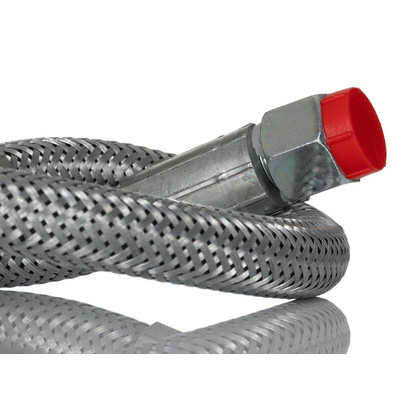

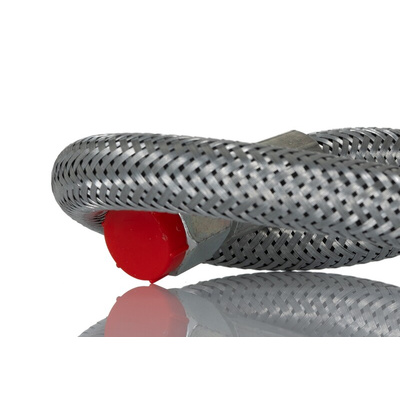

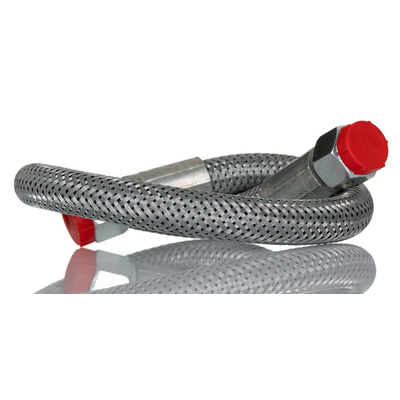

RS PRO 500mm Galvanized Steel Overbraid Hydraulic Hose Assembly, 180bar Max Pressure

RS PRO G 3/8 in Female Galvanized Steel 500 mm Straight Hydraulic Hose

Get connected with the RS PRO galvanised steel wire reinforced hydraulic hose assembly with a synthetic rubber inner hose. This RS PRO flexible hydraulic hose is supplied crimped complete with female-to-female 3/8 inch connectors for attaching to other components. The hydraulic hose us suitable for the safe and secure transmission of various hydraulic fluids from one system or component to another

Features & Benefits

• Flexible hose assembly


• Crimped hose ends


• Synthetic rubber inner hose


• Galvanised steel wire outer hose


• Steel reinforced


• G Thread connectors


• Straight angle connection


• Thread locking


• Minimum Burst Pressure\t720bar


• Bend Radius\t125mm


• Specification\tEN 853 1SN / SAE 100 R1AT


• Hose length of 500 mm


• Maximum operation pressure of 180 bar


• RoHS Compliant

Applications

• Medium pressure applications


• Hydraulic fluids


• Mineral oils, lubrication oils


• Water glycol, water-oil emulsion

Warning

Our flexible hydraulic hose assemblies do transmit hydraulic fluids at high pressures therefore careful attention must be given to the application, connections, material, and technical specifications.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per unit, RS Stock No: 110-2248

Large Pack Size

Pack Quantity of 25, RS Stock No:250-9136

Approvals

RoHS

RS PRO Datasheet
