F2915EVBI, Renesas Electronics Evaluation Board for SP5T Absorptive RF Switch Wireless Evaluation Kit for SP5T Absorptive RF

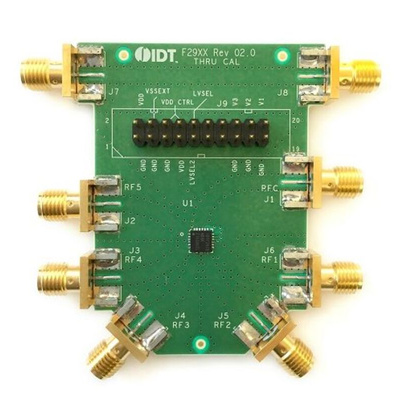

The Renesas Electronic evaluation board allows the customer to easily evaluate the F2915 RF switch. “Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. Each RF port (RF1, RF2, RF3, RF4 and RF5) can be connected to RFC by applying the correct control logic voltage to the V1, V2 and V3 control pins as outlined in the F2915 datasheet. The Vssext feature gives the customer the option to supply an external negative voltage to the Vssext header pin to shut down the internal charge pump for low spur operation.

RF connectors available for RFC and each of the four RF ports
All bias and logic controls are applied to the appropriate pins of the pin header located on the evaluation board

Datasheet - F2915EVBI
