F2923EVBI, Renesas Electronics Evaluation Board for High Reliability SP2T RF Switch F2923 Wireless Evaluation Kit for SP2T RF

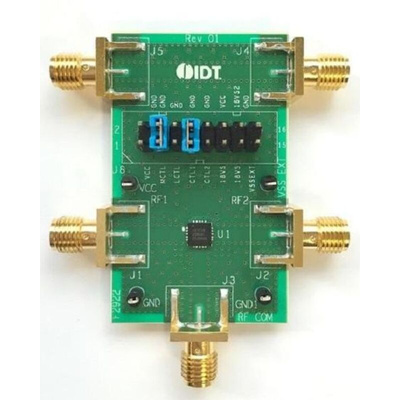

The Renesas Electronic evaluation board allows the customer to easily evaluate the product. "Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. Each RF port (RFC, RF1 and RF2) can be connected to RFC by applying the correct control logic voltage to the V1 and V2. The mode control pin 19 allows the part to be configured for either 1 pin or 2 pin control.

RF connectors available for RFC and each of the four RF ports
All bias and logic controls are applied to the appropriate pins of the pin header located on the evaluation board

Datasheet - F2923EVBI
