440G-S36005, Allen Bradley Guardmaster 440G-S Series Solenoid Interlock Switch, Power to Unlock, 230V ac, Actuator Included

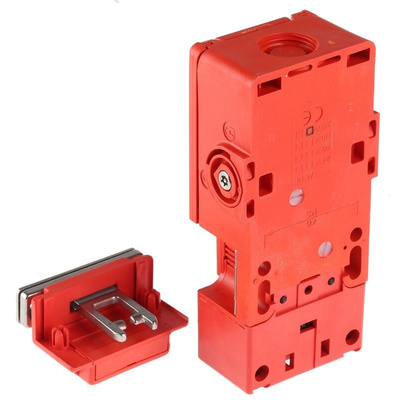

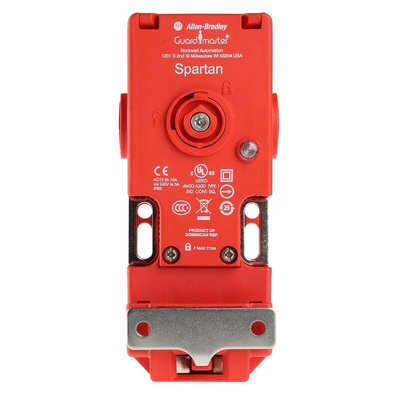

Allen Bradley Guardmaster Spartan 440G-S36005 Solenoid Interlock Switch

Gain superior protection for personnel and keep your machine guard door secure with the Spartan 440G-S Solenoid Safety Interlock Switch by Allen Bradley Guardmaster.

The 440G-S36005 Power-to-Release safety switch has a supply voltage rating of 230VAC/DC and M20 conduit entry. It features a high holding force of 770N (173 lbs) for greater stability. It has 2NC Safety Contacts and 1NO Auxiliary Contact. The housing material is made of UL approved resilient glass-filled polyester, and it has a thermal current of 10A and an operating temperature of -20°C to 60°C.

This Spartan guard locking device is a positive mode, tongue operated switch that isolates power to machinery when the guard is released and keeps safety guards firmly locked in place while a machine is running. The mechanism can only be released when a signal is applied to the internal solenoid, allowing the tongue to be removed from the switch. This cost-effective safety interlock switch offers a higher level of protection for personnel as it restricts access to unsafe areas where machinery is in motion and can cause injury. It also helps prevent damage to machinery from premature interference. It is well suited for use with machines which do not instantly stop.

Features and Benefits:

• Includes a Standard type actuator made of stainless steel
• Lid mounted visual status indication for rapid troubleshooting and door status
• Rotatable head with 4 possible actuator entry positions
• High ingress Protection rating of IP67 which ensures that it can withstand temporary immersion in water and is also dust-tight
• Ideal for use with hinge, sliding, and lift-off doors

Certifications:

IP67 rated
EN954-1
ISO13849-1
IEC/EN60204-1
NFPA79
EN1088
ISO14119
IEC/EN60947-5-1
ANSI B11.19
AS4024
CE certified
cULus approved
CSA certified
TUV certified

Allen Bradley Guardmaster have a broad range of machine monitoring and locking components that are built to high global standards for quality and reliability. Their affordable solutions are expertly designed to meet every requirement and improve protection and productivity in the workplace.

What are Solenoid Interlock Switches?

A solenoid interlock switch is a type of safety switch with an internal solenoid; a wire coil which converts electrical energy to mechanical. This type of mechanism limits access to dangerous areas where machinery may be functioning by ensuring that that barriers remain securely shut. The safety guard can only be opened through either energising (Power to Release) or de-energising (Power to Lock) the solenoid with an external signal. They are often used in industrial environments, for example with high inertia rotating machines.
