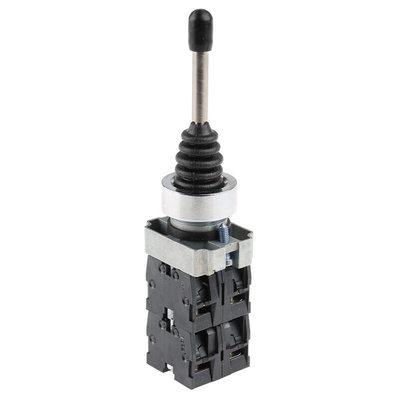

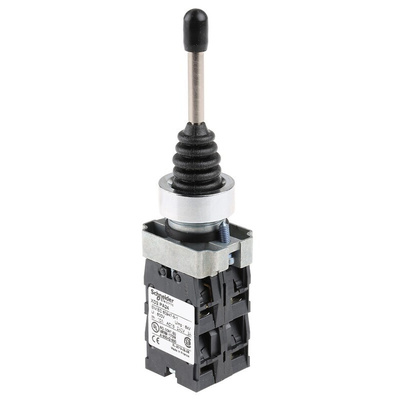

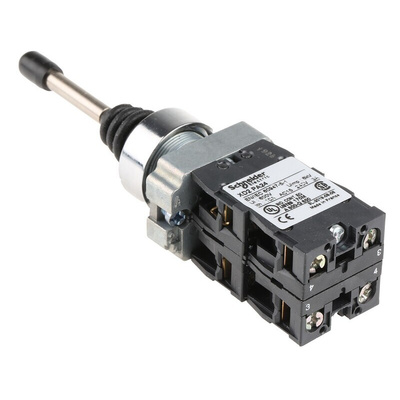

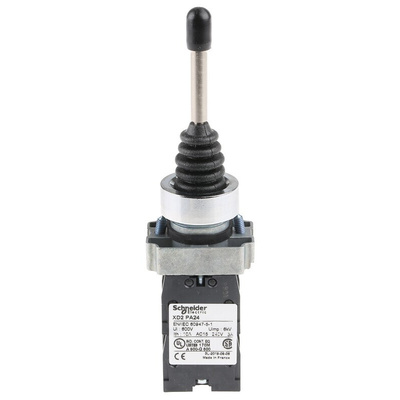

XD2PA24, Schneider Electric 4-Axis Joystick Switch Lever, Slow Break, IP65 240V ac, Джойстик-переключатель

Schneider Electric Spring-Return Joystick Switch, SPST-NO, 240V AC - Harmony XD2 series - XD2PA24

Control heavy machines with ease using this joystick switch from Schneider Electric. The unit features four axes, which means you can easily move equipment in four different directions. Its slow-break switch initiates a time delay so you can control it precisely and pause it if you need to backtrack. This component has a bezel made from chromium-plated metal which has high abrasion resistance, making it ideal for tough applications. An IP66 (ingress protection) rating indicates that its enclosure is protected against dust and is resistant to high-pressure water jets.

Features & Benefits

• 1 million mechanical cycles for long-lasting operation without damage
• Broad operating temperature range of -25°C to +70°C indicates it's suitable for use in harsh conditions
• Lightweight at 0.022kg for easy handling
• 22mm mounting diameter for space-saving integration

Applications

• Construction industry
• Shipping ports
• Automotive applications

How do I control this Schneider Electric joystick switch?

The handle that protrudes from the base is called the lever and this is what you use to control the switch. You only need one notch to move it in a direction. Slowly push the lever in the direction you want the machine to go. The spring return quickly reverts it to its base state so you can use it again without resetting it.

Joystick Controller Data Sheet

Control and signalling units XD2/ZD2

Datasheet

Datasheet - XD2PA24
