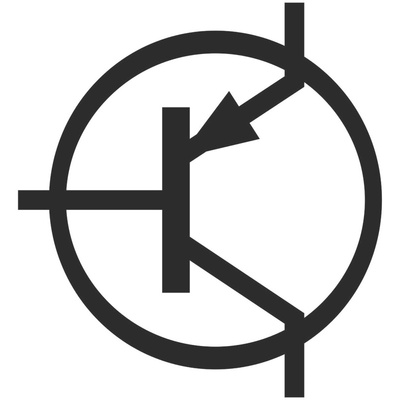

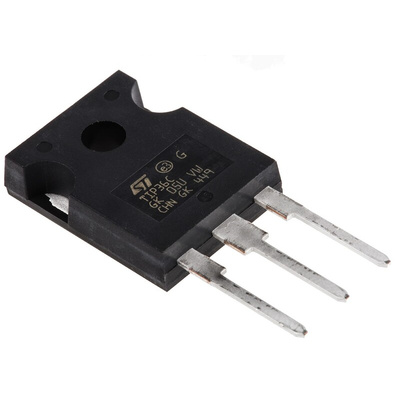

STMicroelectronics TIP36C PNP Transistor, -25 A, -100 V, 3-Pin TO-247, Транзистор

TIP35C/ TIP36C Complementary power transistors

ST Microelectronics presents its TIP35C/ TIP36C series of complementary power transistors. This type of transistor is designed for general purpose power amplification and switching such as output or driver stages. The TIP35C/ TIP36C series are specially manufactured in planar technology with base island layout, this results in the transistors showing exceptionally high gain performance whilst also having a very low saturation voltage.

Features and Benefits

• Low collector-emitter saturation voltage


• Complementary NPN - PNP transistors

Applications

• General purpose


• Audio amplifier


• Switching regulators, converters and power amplifiers

Bipolar Transistors, STMicroelectronics

A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.

PRODUCT/PROCESS CHANGE NOTIFICATION Package change from TO218 to TO247 for Power Bipolar products Notification Date 03/19/2007
