TMR 12-4822WI, TRACOPOWER TMR 12WI DC-DC Converter, 12V dc/ 500mA Output, 18 → 75 V dc Input, 12W, PCB Mount, +85°C Max Temp, Преобразователь

2517306
Номер производителя: TMR 12-4822WIПроизводитель: TRACOPOWER
Цена за шт.
11105.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

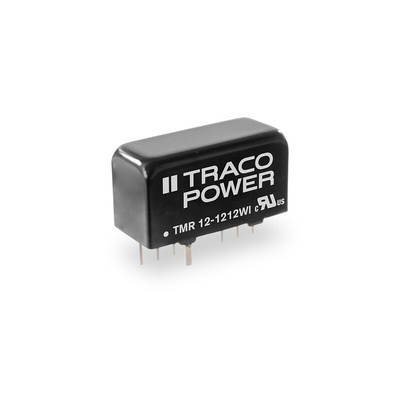

The TRACOPOWER isolated 12 Watt DC/DC converter module with regulated output. The product offers a very high power density of 4.73W/cm³ in an ultra-compact SIP-8 metal package occupying only 2.0 cm² (0.3 square inch) of board space. The very compact dimensions of this converter make it an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.

Wide 4:1 input voltage ranges
I/O-isolation 1600 VDC
High efficiency (up to 90%) for low thermal loss
Operating temperature range -40°C to +85°C
Fully regulated outputs
Remote On/Off control
Indefinite short circuit protection
3-year product warranty

Техническая спецификация
pdfDatasheet - TMR 12-4822WI
