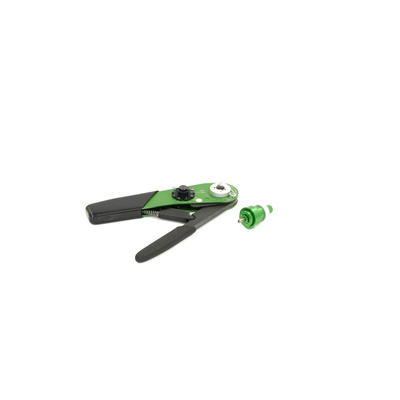

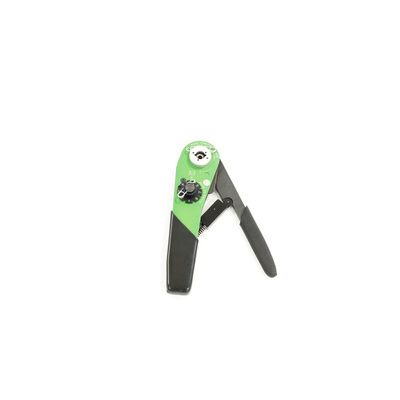

RS PRO Hand Ratcheting Crimp Tool for Crimp Contacts, 00.9 → 0.82mm² Wire

RS PRO Ratchet Hand Crimping Tool for 5A Contacts (28 to 18 AWG)

The RS PRO Hand Crimping tool is a hard wearing and ratchet crimp tool designed to work with the RS PRO range of heavy-duty 5A crimps and wire sizes of 28 to 18 AWG.
Designed to work via compression fitting the RS PRO 5A crimper features a heavy duty Die Cast Aluminium build with a corrosion resistant powder coating and Galvanised Iron levers for a professional and high-quality product fit for demanding applications and environments.
The RS PRO heavy-duty wire crimping tool is easily adjustable utilising a simple turn dial and comes complete with a locator positioner for further adjustments to the frame size to enable the crimping of larger wire sizes.

Features and benefits:

• Ratchet crimp tool


• 8 crimp positions

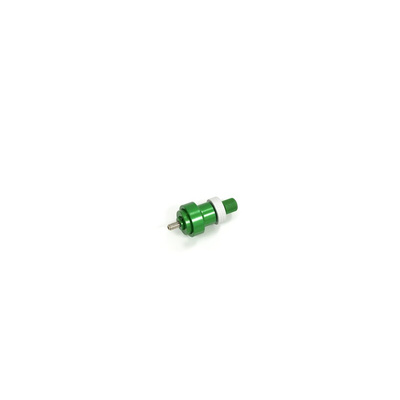

• Supplied with locator


• Hexagon crimp profile


• Die cast Aluminium construction


• Length of 169mm


• Width of 106mm


• Suitable for wire sizes 00.9mm to 0.82 mm²


• Suitable for wire sizers 28 AWG to 18 AWG


• IP65 protection from dust and resistance to water ingress

Suitable RS PRO Crimps:

Silver Plated 5A Crimps

Female 0.09-0.25 mm² / 28 -24 AWG (208-4702)
Female 0.25-0.33 mm² / 26 -22 AWG (208-4703)
Female 0.33-0.52 mm² / 22 -20 AWG (208-4704)
Female 0.52-0.82 mm² / 22 -18 AWG (208-4705)

Male 0.09-0.25 mm² / 28 -24 AWG (208-4706)
Male 0.25-0.33 mm² / 26 -22 AWG (208-4708)
Male 0.33-0.52 mm² / 22 -20 AWG (208-4709)
Male 0.52-0.82 mm² / 22 -18 AWG (208-4710)

Gold Plated 5A Crimps

Female 0.09-0.25 mm² / 28 -24 AWG (208-4694)
Female 0.25-0.33 mm² / 26 -22 AWG (208-4695)
Female 0.33-0.52 mm² / 22 -20 AWG (208-4696)
Female 0.52-0.82 mm² / 22 -18 AWG (208-4697)

Male 0.09-0.25 mm² / 28 -24 AWG (208-4698)
Male 0.25-0.33 mm² / 26 -22 AWG (208-4699)
Male 0.33-0.52 mm² / 22 -20 AWG (208-4700)
Male 0.52-0.82 mm² / 22 -18 AWG (208-4701)
