RS PRO Straight Through Hole Pin Header, 3 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

2518092
Производитель: RS PRO
Цена за шт. (норма упаковки 25 шт)
46.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

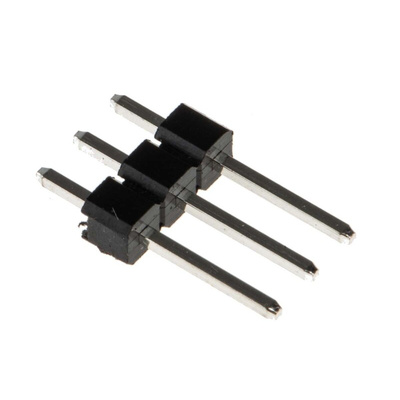

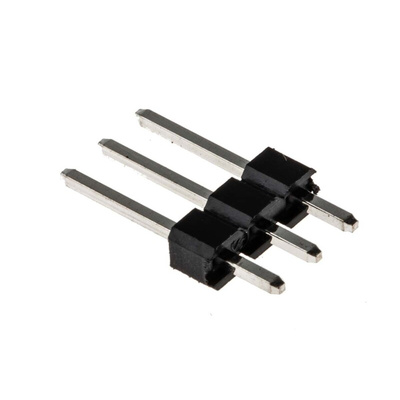

RS PRO, 3-Way, 1 Row, Straight Pin Header

This PCB pin header is a straightforward, time-saving way to connect two PCB (printed circuit board) units. No soldering or wiring is necessary, and you can easily separate the boards again if any problems arise.

With a 2.54 mm pitch, the pin header can simply be snapped to achieve the desired length. It's unshrouded and features through-hole mounting and solder termination. This enables easier, more permanent connections. The contacts of the pin header are made from brass with a pure, bright tin plating to prevent oxidation, corrosion and degradation. The tin finish also means they have excellent surface flatness.

Stringently tested to meet RS PRO standards, this component is made from black glass-filled PBT, a material that's also been certified UL94V-0 for fire safety. Equally suitable for prototyping and more permanent solutions, this type of PCB pin header is commonly used in wire wrap and board-to-board electronics applications, as well as programming.

Features and Benefits

• Unshrouded Straight 3-way Pin Header
• 0.64 mm square pins
• Pitch of 2.54 mm
• Pin height of 7 mm
• Single row
• Straight body orientation (right-angled to the surface)
• Through hole mounting
• Solder termination method
• Brass contacts, with tin-plated finish
• Current rating of 1.0 A

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Длин хвостового штыря:
3.0мм
Длина соединительного штыря:
7.0мм
Защищенный/Незащищенный:
Unshrouded
Кол-во контактов:
3
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Латунь
Номинал тока:
1.0A
Номинальное напряжение:
650.0 V
Ориентация корпуса:
Прямой
Покрытие контактов:
Олово
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
