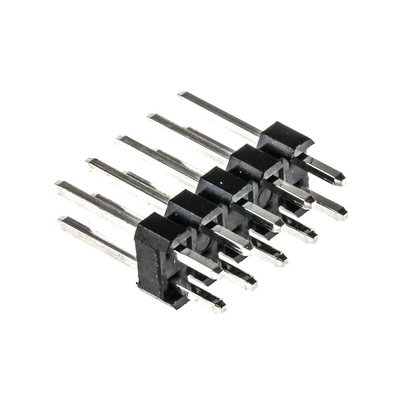

RS PRO Straight Through Hole Pin Header, 10 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

RS PRO, 10 Way, 2 Row, Straight Pin Header

When you need to bridge printed circuit boards (PCBs) and transmit signals and currents between them, use this electrical connector from RS PRO. You can use this connector to create board-to-wire setups with an electronic harness terminal. It can also be used independently for board-to-board connections.


This connector can be through-hole mounted for a strong mechanical bond to keep your components reliably in place. As it's made from heat-resistant thermoplastic, it won't be damaged by soldering or reflow. For reliable conductivity, the pin header has tin-plated brass contacts.


This type of PCB header provides an easy way to connect boards and wires. As the contacts are easy to remove, this product is a good choice when you're working on a prototype that needs to be revised.

Features and Benefits

• Straight body orientation


• Brass contact material


• Tin contact plating


• Current rating of 3 A


• Mating pin length of 7 mm


• Through-hole mounting type


• Ten contacts


• Two rows


• Pitch of 2.54 mm


• Unshrouded


• Tail pin length of 3 mm


• Solder termination method
