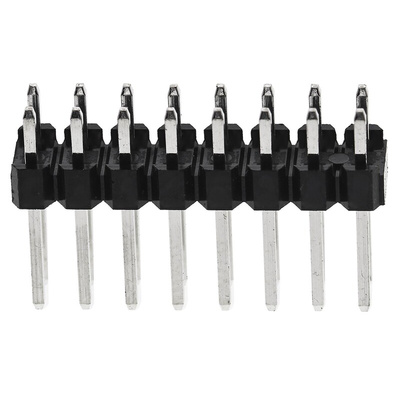

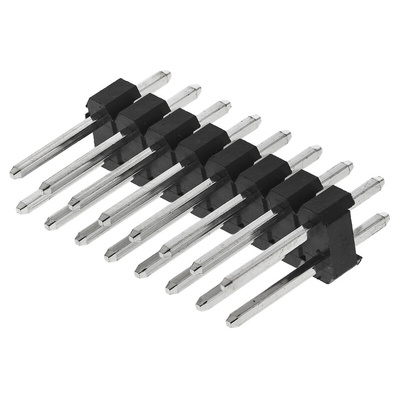

RS PRO Straight Through Hole Pin Header, 16 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

RS PRO, 16 Way, 2 Row, Straight Pin Header

Need an efficient way to bridge printed circuit boards (PCBs) to transmit current and signals between them? Turn to this electrical connector from RS PRO. It's reflow and soldering compatible thanks to its heat-resistant thermoplastic material.


For excellent electrical conductivity and reliable signal transmission, the pin header has tin-plated brass contacts. It's through-hole mounted for a strong mechanical bond that keeps it securely in place for a long time.


You can use this versatile connector either with electronic harness terminals for board-to-wire setups, or independently for board-to-board connections. As it's easy to remove, it's a good choice for prototypes that need revising.

Features and Benefits

• Straight body orientation


• Brass contact material


• Tin contact plating


• Current rating of 3 A


• Mating pin length of 7 mm


• Through-hole mounting type


• 16 contacts


• Two rows


• Pitch of 2.54 mm


• Unshrouded


• Tail pin length of 3 mm


• Solder termination method


• Voltage rating of 500 V
