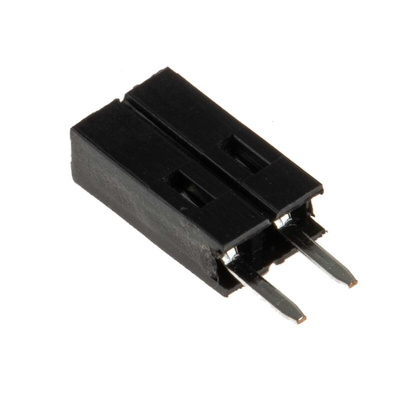

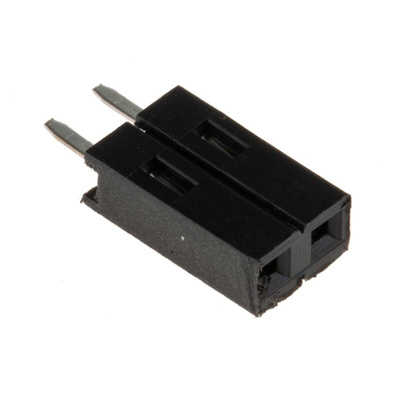

RS PRO Straight Through Hole Mount PCB Socket, 2-Contact, 1-Row, 2.54mm Pitch, Solder Termination

RS PRO 2.54 mm Pitch 2-Way 1-Row Straight PCB Socket, Through Hole, Solder Termination

Connect printed circuit boards (PCBs) with this two-way PCB socket from RS PRO. Used with a male PCB header, this socket allows you to link up two PCBs without cabling, delivering a more secure and stable connection.

The socket has a 2.54 mm pitch in a single row format. It's easy to install thanks to solder termination and straight body orientation. Plus, its through-hole mounting system gives you enough space to hand-solder components. Using this socket, it's possible to vertically stack PCBs – a great alternative to soldering relays directly onto a PCB.

This PCB socket has an operating temperature range of -40° and +105°C. You'll find it in applications where printed circuit boards need to be quickly connected and disconnected. It's well-suited for most board-to-board, bussing and programming requirements.

Features and Benefits

• PCB socket
• 2-way socket strip
• Pitch of 2.54 mm
• 2 contacts
• Single row format
• Straight body orientation for easy installation
• Through-hole mounting system
• Soldering termination method
• Contact material is phosphor bronze
• Contact resistance of 20 mΩ
• Current rating of 1 A
• Operating temperature range between -40° and +105°C
