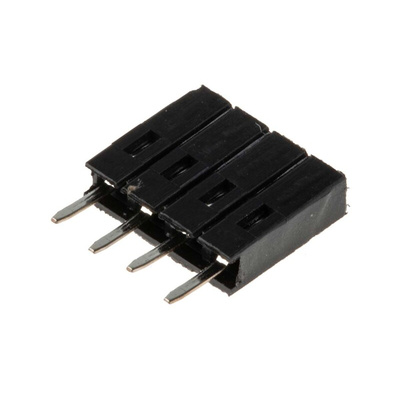

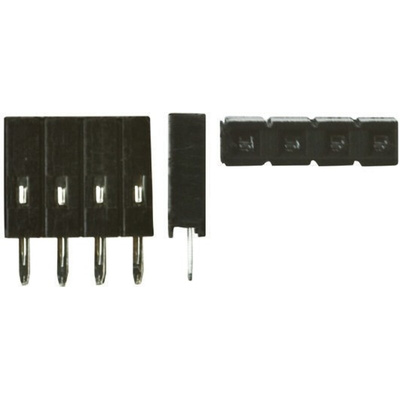

RS PRO Straight Through Hole Mount PCB Socket, 4-Contact, 1-Row, 2.54mm Pitch, Solder Termination

RS PRO 2.54 mm Pitch 4-Way 1-Row Straight PCB Socket, Through Hole, Solder Termination

This PCB socket from RS PRO is a handy tool for connecting printed circuit boards (PCBs). Together with its male counterpart – a PCB header – the socket makes it possible to connect two PCBs without cabling. This delivers a more secure and stable connection.

The socket comes in a single row format with a 2.54 mm pitch. It has a solder termination and a straight body orientation, which makes installation easy. The through-hole mounting system is useful, as it provides enough space to hand-solder components. Plus, it makes vertical stacking of PCBs possible, which is a good alternative to soldering relays directly to a PCB.

PCB sockets can operate effectively in temperatures between -40° and +105°C. They're used in applications where there's a need to connect and disconnect printed circuit boards quickly and are suitable for most board-to-board, bussing and programming requirements.

Features and Benefits

• PCB socket
• 4-way socket strip
• Pitch of 2.54 mm
• 4 contacts
• Single row format
• Straight body orientation for easy installation
• Through-hole mounting system
• Soldering termination method
• Contact material is phosphor bronze
• Contact resistance of 20 mΩ
• Current rating of 1 A
• Operating temperature range between -40° and +105°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
