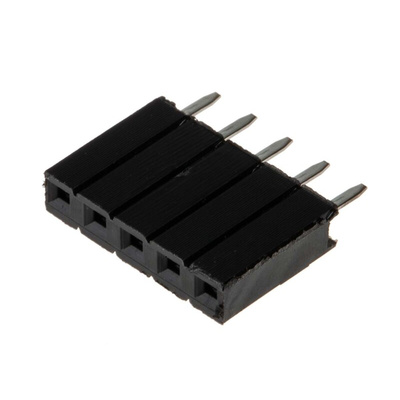

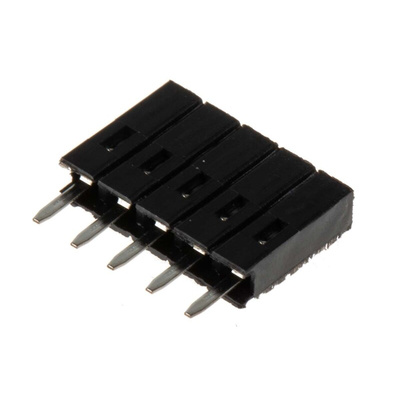

RS PRO Straight Through Hole Mount PCB Socket, 5-Contact, 1-Row, 2.54mm Pitch, Solder Termination

RS PRO 2.54 mm Pitch 5-Way 1-Row Straight PCB Socket, Through Hole, Solder Termination

Link up printed circuit boards (PCBs) with this convenient 5-way PCB socket from our trusted RS PRO range. This socket can connect five PCBs without cabling, giving you a more stable and secure connection.

Featuring a solder termination and straight body orientation, this PCB socket is quick and easy to install. It has a 2.54 mm pitch in a single-row format. Plus, it offers an excellent alternative to soldering relays directly onto a PCB by making it possible to vertically stack PCBs. Thanks to its through-hole mounting system, the socket offers enough room to solder components by hand.

This PCB socket has an operating temperature range of -55° and +105°C. It's commonly found in settings where PCB boards need to be connected and disconnected quickly. Use it to meet your bussing, programming and board-to-board requirements.

Features and Benefits

• PCB socket
• 5-way socket strip
• Pitch of 2.54 mm
• 5 contacts
• Single row format
• Straight body orientation for easy installation
• Through-hole mounting system
• Soldering termination method
• Contact material is phosphor bronze
• Contact resistance of 20 mΩ
• Current rating of 1 A
• Operating temperature range between -55° and +105°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
