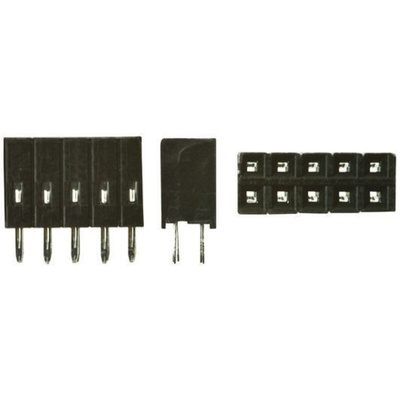

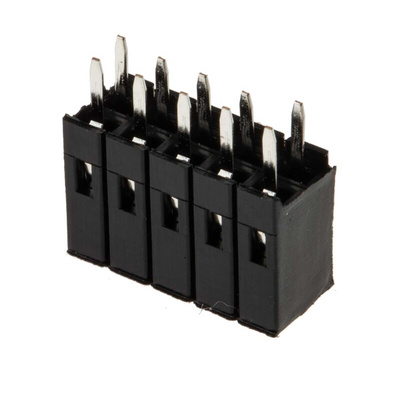

RS PRO Straight Through Hole Mount PCB Socket, 10-Contact, 2-Row, 2.54mm Pitch, Solder Termination

RS PRO 2.54 mm Pitch 10-Way 2-Row Straight PCB Socket, Through Hole, Solder Termination

Link up printed circuit boards (PCBs) with this handy PCB socket from our tried-and-tested RS PRO range. Together with a male PCB header, this socket can connect PCBs without cabling, offering a stable and secure connection.

With a solder termination and straight body orientation, this PCB socket is easy to install. It has a 2.54 mm pitch in a double-row format. Plus, its through-hole mounting system offers a sufficient amount of room to hand-solder components. By making it possible to vertically stack PCBs, this component provides a great alternative to soldering relays directly onto a PCB.

You can use this socket in an operating temperature range of -40° and +105°C. You'll find it in settings that require PCB boards to be connected and disconnected quickly. It's suitable for most board-to-board and bussing applications.

Features and Benefits

• PCB socket
• 10-way socket strip
• Pitch of 2.54 mm
• 10 contacts
• Double row format
• Straight body orientation for easy installation
• Through-hole mounting system
• Soldering termination method
• Contact material is phosphor bronze
• Contact resistance of 20 mΩ
• Current rating of 1 A
• Operating temperature range between -40° and +105°C
