RS PRO Straight Through Hole Pin Header, 36 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

2518339
Производитель: RS PRO
Цена за шт. (норма упаковки 10 шт)
265.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

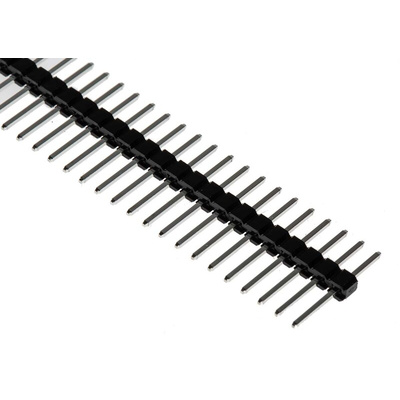

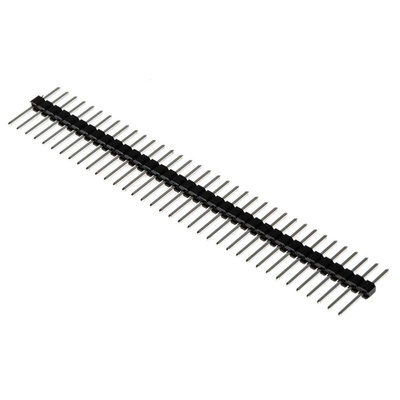

RS PRO, 36-Way, 1 Row, 5.7 mm Length, Straight Pin Header

As part of our reliable RS PRO range, these unshrouded size 3 pin headers have been thoroughly tested for consistency and quality. These electrical connectors feature a row of 36 male pins (or contacts) spaced 2.54 mm apart. The headers are unshrouded and don't come with a plastic guide box.

These headers are crafted from glass-reinforced PBT – a robust and heat-resistant thermoplastic that operates at up to +200°C. Moreover, they're tin-plated, giving them high electrical conductivity and protects against oxidation while improving performance and durability. Simply snap the individual headers to achieve your desired length. They're through-hole mounted, which means that leads run through the circuit board, letting the components withstand greater stress. Finally, solder termination delivers a secure and stable connection.

Pin headers can be used as a link between circuit boards. They feature in common a wide range of electrical systems, in products from computers to cars.

Features and Benefits

• Unshrouded pin headers
• Size 3 – 5.7 mm (W) x 7.6 mm (L)
• 2.54 mm spacing between contacts
• 1 row of 36 contacts
• Mating pin length of 5.7 mm
• Straight body orientation
• Through-hole mounting
• Solder to terminate
• Brass contact material
• Tin contact plating
• Current rating of 4.0 A
• RoHS (Restriction of Hazardous Substances) compliant
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Длин хвостового штыря:
7.56мм
Длина соединительного штыря:
5.7мм
Защищенный/Незащищенный:
Unshrouded
Кол-во контактов:
36
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Латунь
Номинал тока:
4.0A
Ориентация корпуса:
Прямой
Покрытие контактов:
Олово
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
