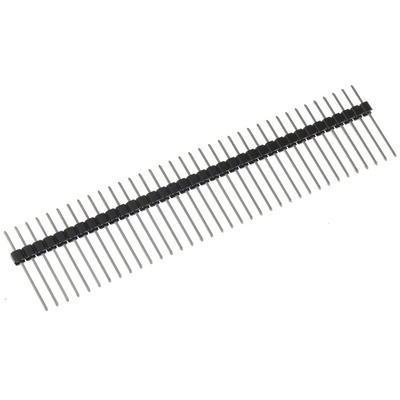

RS PRO Straight Through Hole Pin Header, 36 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

RS PRO, 36 Way, 1 Row, Straight Pin Header

Need to make connections on a printed circuit board (PCB)? This RS PRO straight pin header will do the job. You can also use it to join multiple boards together quickly and easily without soldering or wiring. For quick yet secure installation, it can be through-hole mounted.


The PCB header is long enough to be used for more than one circuit. Simply break it to the length you need for your application. The connector consists of one row of pins and a body that holds them in a grid. The thermoplastic body material is highly heat-resistant, so the connector won't melt and lose its shape in the event of overheating.


This product comes with hard-wearing brass pin contacts with tin plating for reliable conductivity and corrosion resistance. You'll commonly find connectors like this one used in product development, as they're useful for prototyping and troubleshooting tasks.

Features and Benefits

• Straight body orientation


• Brass contact material


• Tin contact plating


• Current rating of 1 A


• Mating pin length of 5.7 mm


• Through-hole mounting type


• 36 contacts


• Single row


• Pitch of 2.54 mm


• Unshrouded


• Tail pin length of 12.76 mm


• Solder termination method


• Voltage rating of 650 V
