RS PRO Straight Through Hole Pin Header, 36 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

2518351
Производитель: RS PRO
Цена за шт. (норма упаковки 10 шт)
312.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

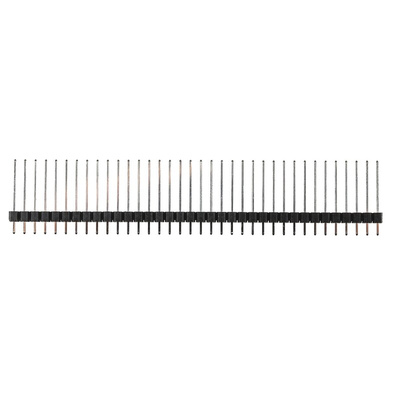

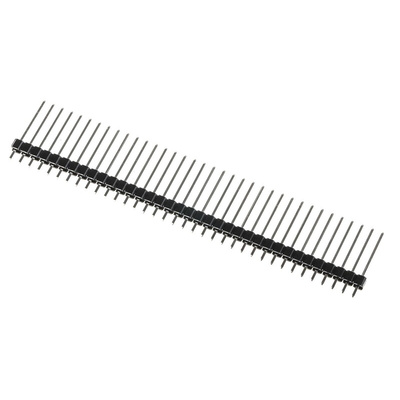

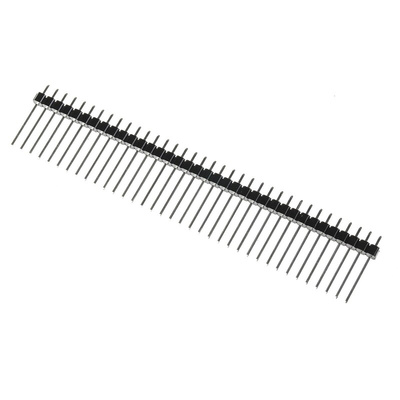

RS PRO, 36-Way, 1 Row, Straight Pin Header

These 2.54 mm unshrouded pin headers are from the reliable RS PRO range. They're electrical connectors formed from a row of 36 male pins – or contacts – each spaced 2.54 mm apart. They're unshrouded, meaning they don't have a plastic guide box around them.

The headers are made from glass-reinforced PBT, a durable and heat-resistant thermoplastic that operates at up to 200°C. In addition, the contacts are tin-plated. This means they have high electrical conductivity and are protected against oxidation for improved performance and durability. Individual headers can be simply snapped to achieve your desired length. These pin headers are through-hole mounted so leads run through the circuit board, allowing components to withstand more stress. Solder termination provides a secure and permanent connection.

Pin headers are used as a bridge between circuit boards and can be found in everything from computers to cars.

Features and Benefits

• Unshrouded pin headers
• 2.54 mm spacing between contacts
• 1 row of 36 contacts
• Straight body orientation
• Through-hole mounting
• Solder to terminate
• Brass contact material
• Tin contact plating
• Current rating of 4.0 A
• RoHS (Restriction of Hazardous Substances) compliant
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Длин хвостового штыря:
3.06мм
Длина соединительного штыря:
12.7мм
Защищенный/Незащищенный:
Unshrouded
Кол-во контактов:
36
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Латунь
Номинал тока:
4.0A
Ориентация корпуса:
Прямой
Покрытие контактов:
Олово
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
