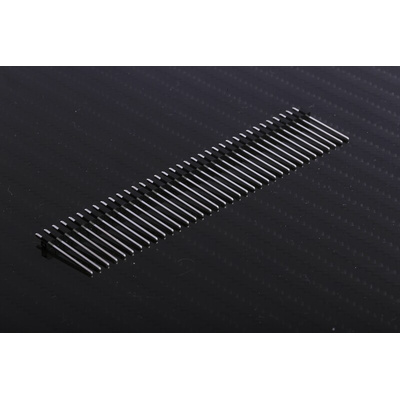

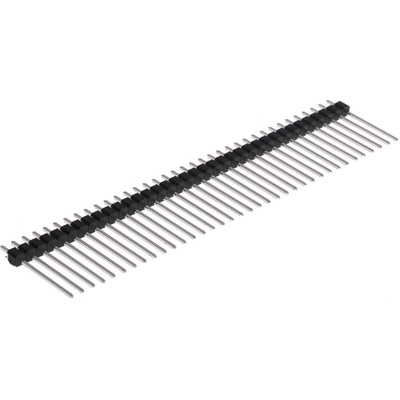

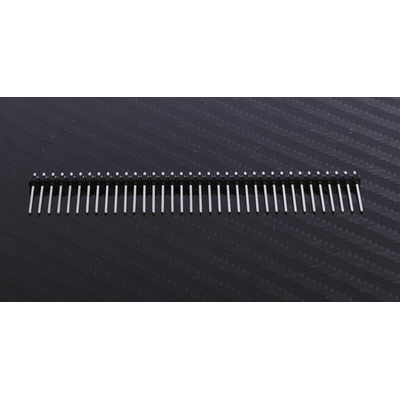

RS PRO Straight Through Hole Pin Header, 36 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

RS PRO, 36-Way, 1 Row, 14.5 mm Length, Straight Pin Header

Part of our reliable RS PRO range, these are 2.54 mm unshrouded pin headers. These electrical connectors feature a row of 36 male pins (or contacts) spaced 2.54 mm apart. The size 7 headers are unshrouded and don't come with a plastic guide box.

They're made from glass-reinforced PBT – a robust and heat-resistant thermoplastic that operates at up to +200°C. In addition, the pin headers are tin-plated. This gives them high electrical conductivity and protects against oxidation, while also improving performance and durability. Simply snap the individual headers to achieve your desired length. They're through-hole mounted, which means that leads run through the circuit board, letting the components withstand more stress. Finally, solder termination offers a secure and stable connection.

Pin headers can be used as a bridge between circuit boards. They're typically found in electronic systems in everything from computers to cars.

Features and Benefits

• Unshrouded pin headers
• Size 7 – 14.7 mm (L) x 2.9 mm (W)
• 2.54 mm spacing between contacts
• 1 row of 36 contacts
• Straight body orientation
• Through-hole mounting
• Solder to terminate
• Brass contact material
• Tin contact plating
• Current rating of 1.0 A
• RoHS (Restriction of Hazardous Substances) compliant
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
