RS PRO Straight Through Hole Pin Header, 72 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

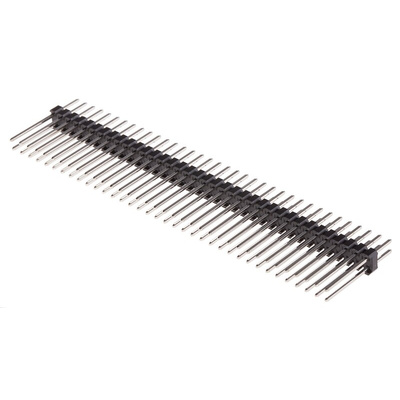

RS PRO, 72 Way, 2 Row, Straight Pin Header

When you need an efficient way to make connections on a printed circuit board (PCB), turn to this RS PRO straight pin header. You can also use it to quickly and easily join multiple boards together with no need for any soldering or wiring. It's through-hole mounted for quick yet secure installation.


The connector is made up of two rows of pins and a body that holds them in a grid. Thanks to the body's heat-resistant thermoplastic material, the connector won't melt or change shape if the boards overheat. For added convenience, you can use the header for more than one circuit by simply breaking off the required length for your application.


This product has tin-plated brass contacts for excellent conductivity and a reliable, long-lasting connection. PCB headers like this one are often used in product development, as they're useful for prototyping and troubleshooting tasks.

Features and Benefits

• Straight body orientation


• Brass contact material


• Tin contact plating


• Current rating of 4 A


• Mating pin length of 5.7 mm


• Through-hole mounting type


• 72 contacts


• Two rows


• Pitch of 2.54 mm


• Unshrouded


• Tail pin length of 12.76 mm


• Solder termination method
