RS PRO Right Angle Through Hole Pin Header, 36 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

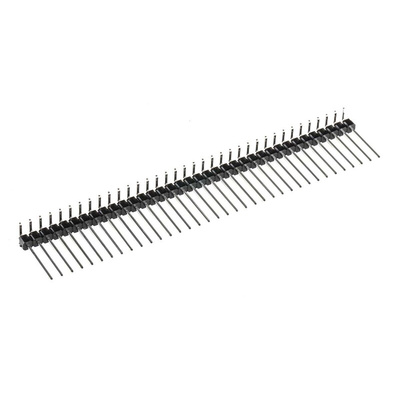

RS PRO, 36 Way, 1 Row, Right Angle Pin Header

Need to repair crash damage to a multi-rotor flight board or add pinouts to an electronics project? This 90-degree pin header from RS PRO is designed to bridge isolated or broken connections on printed circuit boards (PCB). If you need a custom length, you also have the option to snap the pin header.
The product is easy to solder as the contacts are made of tin-plated brass. The pin header has an Underwriters Laboratories UL94V-0 certification. This means that if an electrical fault causes a fire, the pin header can resist flames for a short period of time and will slow the spread of fire. This product meets Restriction of Hazardous Substances (RoHS) standards, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits

• Right angle body orientation
• Brass contact material
• Tin contact plating
• Maximum current rating of 4 A
• Current rating of 1 A
• Mating pin length of 12.5 mm
• Voltage rating of 650 V
• Through-hole mounting
• 36 contacts
• One row
• Pitch of 2.54 mm
• Unshrouded
• Solder termination method
• Operating temperature range of -55°C to +125°C
• Pin size of 0.64 mm square
