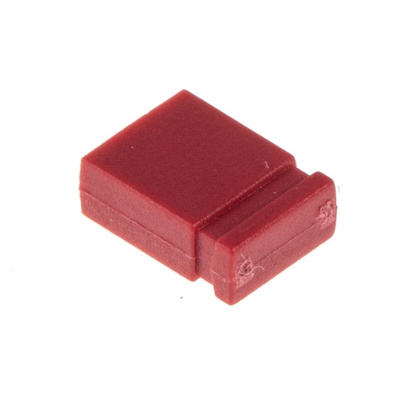

RS PRO Shorting Link Female Straight Red Closed Top 2 Way 1 Row 2.54mm Pitch

RS PRO Shorting Link Female Straight Red Closed Top 2 Way 1 Row 2.54 mm Pitch

Create a precise and dependable connection with this red RS PRO single-row shorting link. It has a closed-top shorting link with a pitch of 2.54 mm, and is designed to mate with 0.6 mm² headers with a recommended minimum header length of 4.3 mm. Links like this one are commonly used by both computing professionals and electricians.

This component is tin-plated with phosphor bronze contacts, along with red glass-filled PBT UL94V-0 (thermoplastic insulator) housing. Its composition makes it resistant to harsh environments and extreme conditions. The shorting link has a female design and straight orientation, with a maximum contact resistance of 20 mΩ. It measures 4.98 mm x 6.47 mm x 2.44 mm.

Part of the RS PRO PCB (printed circuit board) connector range, this product can be used to cover most board-to-board, bussing and programming requirements.

Features and Benefits

• Closed top shorting link
• Two contacts with one row
• Female gender
• Straight orientation
• Phosphor bronze contact that's resistant to corrosion
• Tin over nickel contact plating
• Maximum contact resistance of 20 mΩ
• Length of 4.98 mm
• Width of 6.47 mm
• Depth of 2.44 mm
• Pitch of 2.54 mm
• Red colour

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
