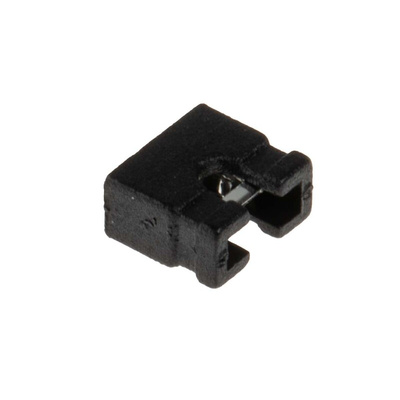

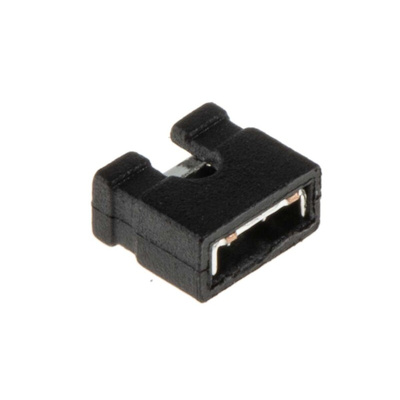

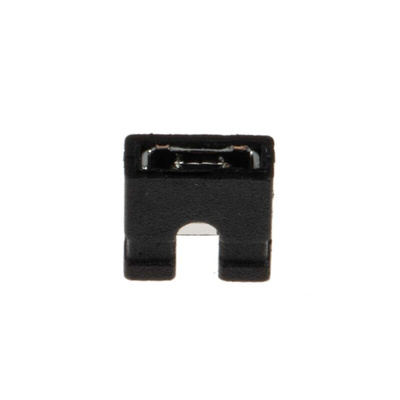

RS PRO Shorting Link Female Straight Black Open Top 2 Way 1 Row 2.54mm Pitch

RS PRO Shorting Link Female Straight Black Open Top 2 Way 1 Row 2.54 mm Pitch

Boasting a female design that's consistent and reliable, this RS PRO shorting link is used to mate with a 0.64 mm² header. Black in colour and straight in orientation, this product is typically used by electricians and computing industry professionals.

Ensuring a dependable connection, this open-top shorting link has been fitted with two 3 A-rated tin-plating contacts. These are made from phosphor bronze, while the component's housing is crafted from PBT UL94V-0 (thermoplastic), both making it highly resistant to corrosion. With a pitch of 2.54 mm, the shorting link has a low-profile design, as well as a width of 5.97 mm and depth of 2.44 mm. Finally, its maximum contact resistance is 75 mΩ.

Part of our RS PRO PCB (printed circuit board) connector range, this shorting link is used for a variety of board-to-board, bussing and programming requirements.

Features and Benefits

• Female shorting link
• Straight orientation
• Open top type
• Two contacts
• Single row
• Phosphor bronze contact material that's resistant to corrosion
• Tin contact plating
• Maximum contact resistance of 75 mΩ
• Length of 4.98 mm
• Pitch of 2.54 mm
• Depth of 2.44 mm
• Black colour

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
