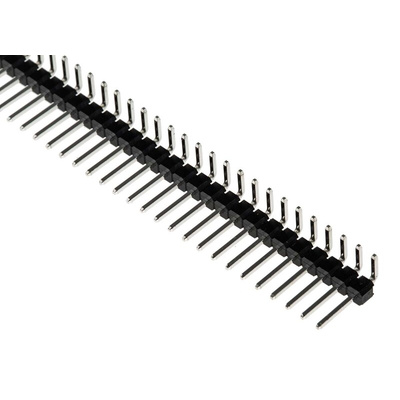

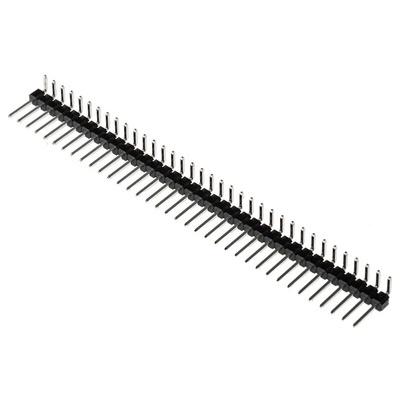

RS PRO Right Angle Through Hole Pin Header, 36 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

2518654
Производитель: RS PRO
Цена за шт. (норма упаковки 10 шт)
273.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO, 36-Way, 1 Row, Right Angle Pin Header

This 36-way PCB (printed circuit board) pin header is an effective solution if you need to connect two PCBs. Simple and efficient, it also allows you to easily separate the boards again if any problems arise later. No soldering or wiring is necessary, and this ease of connection means that it's great for both prototyping and permanent solutions.

The pin header is easy to snap to your required length, making it extremely versatile. Through-hole mounting and solder termination enables easier, more permanent connections. The contacts are made from brass with a tin plating, to protect against degradation from oxidation or corrosion. The pin header has a right-angle orientation and a 2.54 mm pitch.

The housing of this component is made of PBT, a material that has been certified UL94 V-0 for a good level of flame resistance. This versatile PCB pin header is suited to the vast majority of bussing, board-to-board and programming applications.

Features and Benefits

• Pitch of 2.54 mm
• 36 contacts
• Single row
• Right-angle body orientation
• Unshrouded
• Through hole mounting type
• Solder termination method
• Brass contact material
• Tin contact plating
• Current Rating of 1.0 A

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Длин хвостового штыря:
3.0мм
Длина соединительного штыря:
7.0мм
Защищенный/Незащищенный:
Unshrouded
Кол-во контактов:
36
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Латунь
Номинал тока:
1.0A
Номинальное напряжение:
650.0 V
Ориентация корпуса:
Правый угол
Покрытие контактов:
Олово
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
