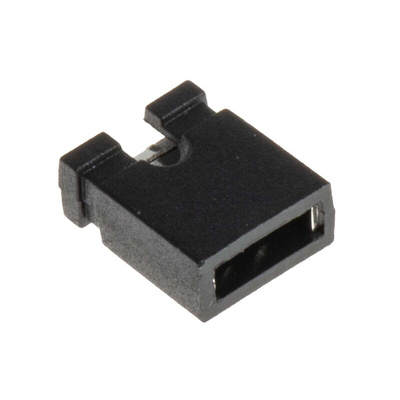

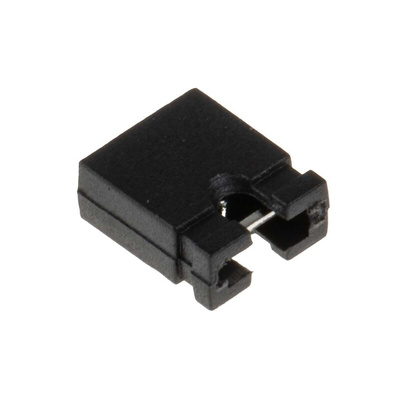

RS PRO Shorting Link Female Straight Black Open Top 2 Way 1 Row 2.54mm Pitch

RS PRO Shorting Link Female Straight Black Open Top 2 Way 1 Row 2.54 mm Pitch

Used to mate with a 0.64 mm² header, this RS PRO shorting link has a female design that’s consistent and reliable. It has a straight orientation, comes in a black colour and is commonly used by electricians and computing industry professionals, as the shorting link ensures a dependable connection.

The open-top shorting link has two 3 A-rated tin-plating contacts for your connection. The contact has a phosphor bronze material, as well as, a PBT UL94V-0 (thermoplastic) housing that makes it resistant to corrosion. The shorting link has a low-profile design with a pitch of 2.54 mm, a width of 5.97 mm and a depth of 2.44 mm. It also has a maximum contact resistance of 7 mΩ. From the RS PRO PCB (printed circuit board) range of connectors, this shorting link is used for most board-to-board, bussing and programming requirements.

Features and Benefits

• Female shorting link
• Straight orientation
• Open top type
• Two contacts
• Single row
• Phosphor bronze contact material that's resistant to corrosion
• Tin contact plating
• Maximum contact resistance of 7 mΩ
• Length of 4.98 mm
• Pitch of 2.54 mm
• Depth of 2.44 mm
• Black colour
