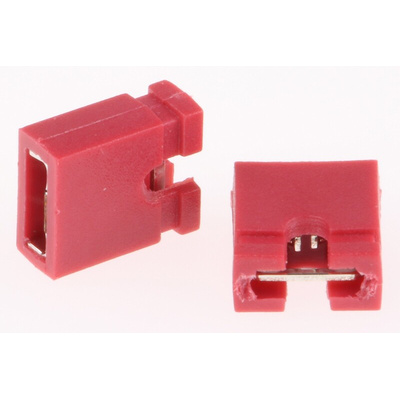

RS PRO Shorting Link Female Straight Red Open Top 2 Way 1 Row 2.54mm Pitch

RS PRO Shorting Link, Female Straight Red Open Top, 2-Way, 1 Row, 2.54 mm Pitch

Use this adaptable connector from RS PRO to bridge and bypass parts of motherboards and other electronic circuits. It's designed to be mated with a 0.64 mm² header for a very dependable connection.
The polybutylene terephthalate (PBT) housing provides insulation to phosphor bronze contacts for increased conductivity. These contacts are tin-plated to improve corrosion resistance and make the job of inserting them onto printed circuit boards (PCBs) easier. This shorting link operates within a temperature range of -65°C and +150°C, so it can be used in extremes of heat and cold. It's also passed Underwriter Laboratories UL94 V-0 fire standards, which makes it safe for applications where fire safety is critical.
Connectors of this type are commonly found in the electronics and computer industries. They're used for a wide range of bussing, programming and board-to-board applications.

Features and Benefits

• Red colour
• Phosphor bronze contact material
• Tin contact plating
• Dimensions of 4.98 (L) x 5.97 (W) x 2.44 mm (D)
• Female gender
• Maximum contact resistance of 7 mΩ
• Two contacts
• Single row
• Straight orientation
• Pitch of 2.54 mm
• Open top type
