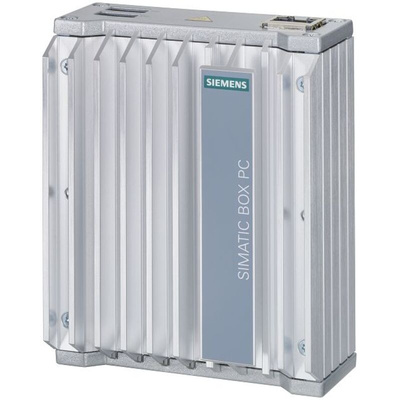

6AG40210AA120BA0, Siemens IPC127E Gateway

The Siemens SIMATIC IPC127E is an ultra-compact IoT gateway for data collection, pre-processing, and forwarding of data. An ultra-compact enclosure, which has a volume of just 0.3 litres, the SIMATIC IPC127E can be easily integrated into the control cabinet or directly on the machine with minimal space requirements. The SIMATIC IPC127E makes it possible to reliably record / collect / process / transfer data directly in the production environment and can be flexibly used as an IoT gateway between the cloud or the corporate IT level and production.

It has current CPU technology of the Intel-Apollo-Lake series
Power consumption is less than or equal to 15 W i.e. low heat dissipation in the enclosure or control cabinet
Wake-on-LAN for remote-controlled switching between standby and active state
Solid-state drive as rugged mass storage of 32 / 64 / 128 GB
It consists of 2x / 3x Gbit Ethernet
1 DisplayPort as graphics connection
Maintenance free since there are no rotating parts fans or HDD
Self-diagnostics by means of local diagnostics software SIMATIC IPC Diabase
Up to 55°C ambient temperature and dust protection due to closed enclosure

Datasheet - 6AG40210AA120BA0
