RS PRO Switching Power Supply, 0 → 150V, 10A, 1-Output, 1.5kW - RS Calibrated

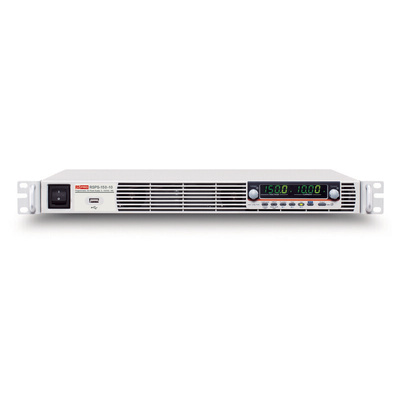

RS PRO Programmable Switching D.C Power Supply

From RS PRO this is the programmable switching DC bench power supply with a high-power density design plus compatible with a 19-inch Rack mount. The programmable switching power supply is a single power output DC power supply, ideal for test system installations and system integration and has excellent voltage and current control systems. This RS PRO power supply is suitable for various test conditions and DUTs which include electronic testing, micro-resistors, relays, shunt resistors, and automotive electronic testing. A bonus to this bench power supply is that by using the same model of the unit with series and parallel connections you can increase the total output power, current or voltage. This model is a truly versatile power supply with a wealth of features and application opportunities.

Features & Benefits

• Single output power supply


• Can be connected in Series for two units


• Can be connected in Parallel – maximum four units


• C.V/C.C Priority mode for battery and LED industry


• Three sets of pre-set function


• Bleeder control, internal resistance, panel lock functions


• Adjustable slew rate


• High efficiency and high-power density


• 19-inch Rack mount size design


• Standard interface, LAN, RS-232, RS-485, USB device/host, analogue control interface


• Optional interface, GPIB/isolated analogue control interface


• sequential output function, built-in 8 template wave forms


• Forced air-cooling fan


• Size 423 mm wide, 43.6 mm high, 447.2 mm depth, weight 8.7 kg


• OVP, OCP, OHP, UVL, AC Fail and fan fail protection

Applications

• Primary input of DC/DC convertor


• Servomotor manufacturing equipment


• Aging test equipment for capacitors and diodes


• Power supply for communications equipment


• Electronic components testing


• Micro resistors, relays, shunt resistors
