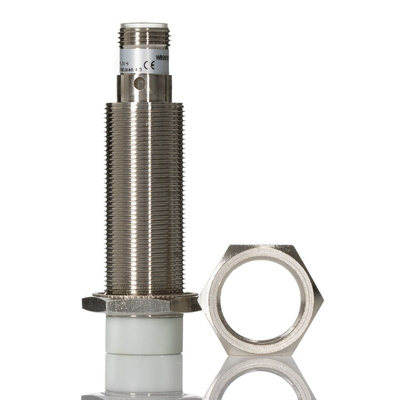

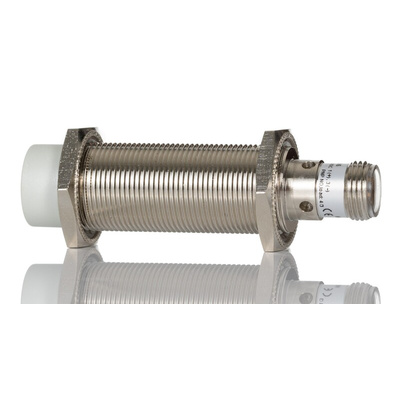

RS PRO Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, NPN Output, 10 → 30 V dc, IP67

RS PRO Inductive Proximity Sensor, Cylinder, Nickel-Copper Alloy, NPN Output, IP67.

From RS PRO this is an impressive Inductive Proximity Sensor giving you safe and reliable non-contact detection specifically targeted for metallic object detection. The inductive sensor providing an extended sensing distance, IP67 ingress protection from dust and liquid, including reverse polarity, short-circuit and overload protection, all housed within a Nickel-Copper Alloy material. Included are Yellow LED output indication and M12 connector.

FEATURES & BENEFITS.

•Cylinder shaped sensor, size M18.
•ASIC Design.
•Metallic target detection.
•Quasi-Flush mounting.
•8 mm distance detection.
•NPN NO output.
•10 to 30 V dc supply voltage.
•Reverse polarity, Short-Circuit and Overload protection.
•Yellow LED output indication.
•400 Hz Switching frequency.
•10 to 50 Hz Vibration resistance.
•Nickel-copper alloy Housing.
•M12 connection.
•IP67 protection.
•CE, UL Compliant.

APPLICATIONS.

The RS PRO Inductive Proximity Sensor is the perfect option for safe non-contact metallic target detection with an extended inductive sensing distance.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
