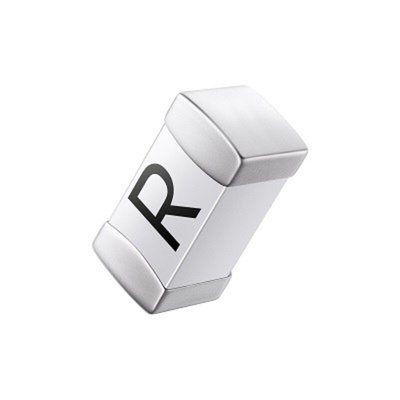

RS PROSMD Non-Resettable Surface Mount Fuse 1.5A, 63V

RS PRO SMD LTCC Ceramic Fast Acting Fuse (0603)

A ceramic fast-acting SMD fuse (or fast blow fuse) with an immediate response to short circuits, power surges and mismatched loads, designed to protect against permanent damage to sensitive electronics and electrical systems.
Fast acting fuses are the most common and effective way to protect electronic equipment reacting quicker than other types of fuses and reducing the damage from heat, electrical and magnetic damage from power surges.
Lightweight and surface mount (SMD) the fuse is designed for direct attachment to the circuit board saving weight and valuable space and at the industry standard 0603 fuse size it is suitable for a wide range of applications, including:

Notebook computers and Laptops
Portable electronics
Wireless base station
Networking
Telecom systems

Features and Benefits

• LTCC (Low Temperature Co-Fired Ceramic)


• Precise melting time


• Surface mount fuse


• Breaking capacity of 35 A @ 63 V dc


• Operating temperature range of -55°C to +125°C


• Dimensions of 1.6 x 0.8 x 0.8 mm

Standards and Approvals: RoHS/ REACH compliant
