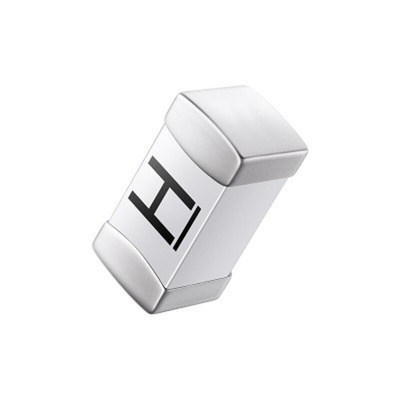

RS PROSMD Non-Resettable Surface Mount Fuse 5A, 63V

RS PRO SMD LTCC Ceramic Slow Acting Fuse (0603)

A ceramic slow acting SMD fuse (slow blow fuse) intended to protect against short circuits, power surges and mismatched loads avoiding permanent damage to sensitive electronics and electrical systems.
Slow acting fuses, sometimes referred to as a slow blow or time delay fuse, are a type of fuse designed to withstand temporary surges in current above its current rating. Slow acting fuse are particularly useful to protect against short circuits where there is a sustained surge in power above the current rating.
Lightweight and surface mount (SMD) the fuse is designed for direct attachment to the circuit board saving weight and valuable space.
The PCB fuse is specially customized for use in game consoles and controllers and at the industry standard 0603 fuse size is suitable for a wide range of applications, including:

Gaming consoles and controllers
Notebook computers and Laptops
Portable electronics
Wireless base station
Networking
Telecom systems

Features and Benefits

• LTCC (Low Temperature Co-Fired Ceramic)


• High degree of inrush current capability


• Precise melting time


• Surface mount fuse


• Breaking capacity of 35 A @ 63 V dc


• Operating temperature range of -55°C to +125°C


• Dimensions of 1.6 x 0.8 x 0.8 mm

Standards and Approvals: RoHS/ REACH compliant
